We provide professional Pallet Conveyor Chain System that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

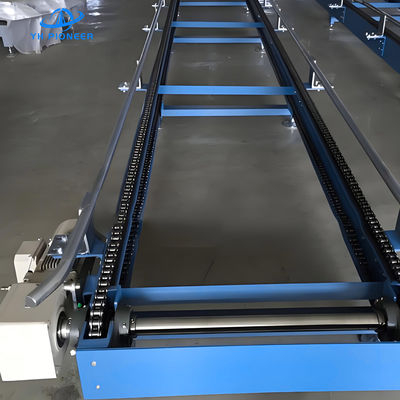

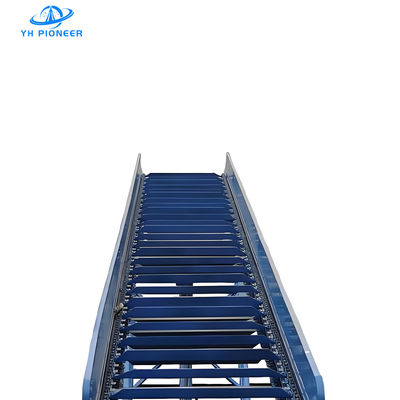

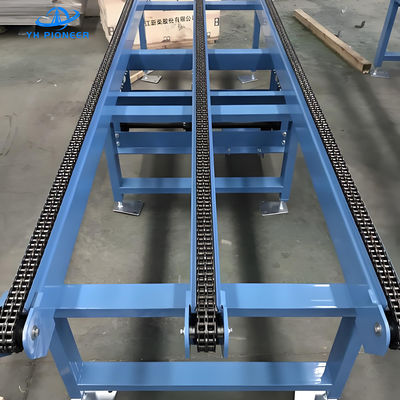

The Pallet Conveyor Chain System is designed for efficient and reliable transportation of heavy loads, such as pallets, in industrial settings. This system is ideal for manufacturing, warehousing, and distribution operations, providing a robust solution for material handling. It is built to deliver years of reliable, high-performance operation, with modular designs that ensure easy integration with existing equipment.
PRODUCT PARAMENTERS
| conveying type |
chain |
| Voltage |
220V-415V 3phase |
| Power |
1.5KW 50HZ/60HZ |
| Loading |
1000-2000kg |
| Frame size/material |
carbon steel |
| Width of transfer |
As your pallet size |
| Height of transfer |
As your requirements(Min.500mm) |
| Speed |
10m/min or 5-15m/min adjust |
| length of transfer |
As your requirements(Max.2m) |
| Packing |
wooden case |
| Lead time |
As product |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
*High load capacity, suitable for heavy-duty tasks.
*Durable and wear-resistant, with high-strength materials used in chains and other components.
*Adaptable to various working environments, including high temperatures, humidity, and harsh conditions.
*Continuous operation capability, ideal for large-scale automated production.
*Easy maintenance, with simple replacement and servicing of chains and other components.
*Customizable configurations, including different types of chains and transfer structures.
*Can be equipped with accessories such as side panels, guards, and pushers to meet the conveying needs of various materials.
PRODUCT SPECIFICATIONS
Conveying Type: Chain
Voltage: 220V-415V 3phase
Power: 1.5KW 50HZ/60HZ
Loading Capacity: 1000-2000kg
Frame Size/Material: Carbon steel
Width of Transfer: Customizable based on pallet size
Height of Transfer: Customizable, with a minimum of 500mm
Speed: 10m/min or adjustable between 5-15m/min
Length of Transfer: Customizable, with a maximum of 2m
Packing: Wooden case
Lead Time: Varies based on product specifications
COMPONENT MATERIALS
Frame: Constructed from carbon steel for strength and durability.
Chains: Made from high-strength steel, designed for heavy-duty use.
Drive Mechanism: Includes a motor and reducer to provide power.
Support Structure: Typically made from aluminum profiles or carbon steel, with surface treatment such as phosphating and painting.
Sprockets: Work in conjunction with the chains to facilitate material transfer.
PRODUCT APPLICATION
Manufacturing: Ideal for transporting heavy components in automotive and appliance production.
Logistics: Used in logistics centers for loading and unloading goods.
Food Processing: Suitable for conveying raw materials or finished food products.
Automotive Industry: Used in automotive production lines for transporting large components.
Material Handling: Efficient for loading, unloading, and storage of goods in warehouses.
Chemical and Pharmaceutical Industries: Used for conveying raw materials and finished products.
Building Materials and Mining: Suitable for long-distance, high-volume transportation of materials like cement, glass, and minerals.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Pallet Conveyor Chain System remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
