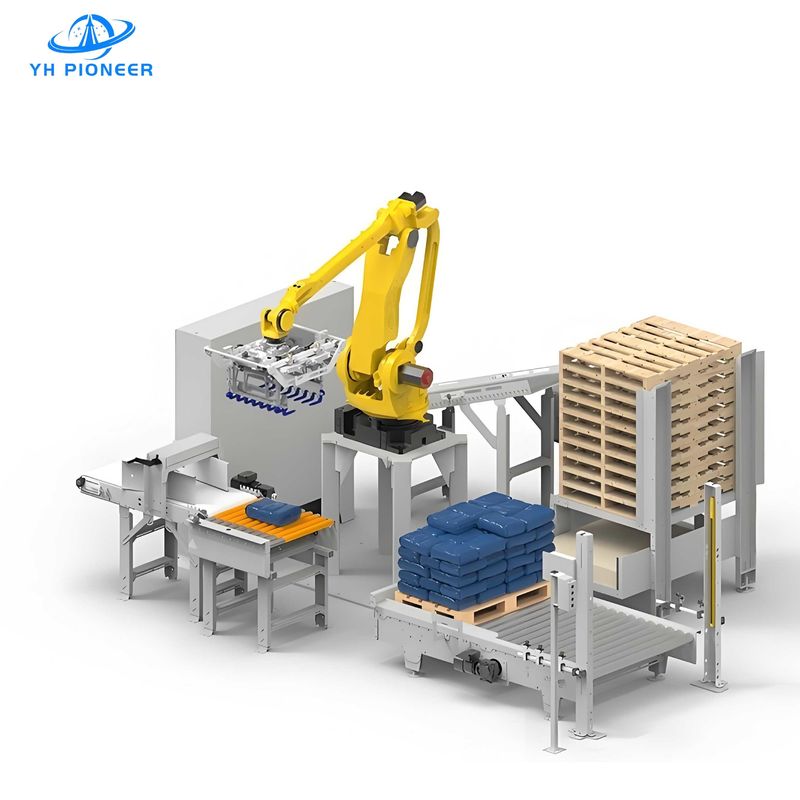

Steel Framed Automatic Bag Palletizer For High Volume Fertilizer And Cement Bag

We provide professional Bag Stacking Palletizer that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

The Bag Stacking Palletizer is an advanced automation solution designed for the efficient stacking of bagged products onto pallets. This machine is highly adaptable and can handle a variety of bag types, making it an ideal choice for industries such as food, pharmaceutical, chemical, and more. With its robust construction and intelligent control system, the Bag Stacking Palletizer ensures precise and reliable palletizing operations.

Overall Size: 2800mm x 2800mm x 1000mm, accommodating large-scale operations.
Palletizing Capacity: Capable of 400-500 bags per hour, ensuring high throughput.
Power Supply: 380V, 50Hz, 3-phase, suitable for standard industrial power systems.
Power Consumption: 5kw-8kw, reflecting its high-performance capabilities.
Palletizing Layer: Adjustable for 1-12 layers, catering to different stacking requirements.
Air Supply Pressure: Requires 0.6-1.0 Mpa, compatible with most industrial air systems.
Operating Position: Equipped with 2 dual operating positions for versatility.
Bag Pattern: Designed for 5/6/7/8 flower patterns, enhancing the stacking stability.
Maximum Bag Size: Can handle bags with dimensions up to 480mm x 300mm x 240mm.
Minimum Bag Size: Effective for smaller bags with dimensions as small as 260mm x 190mm x 240mm.

PRODUCT MATERIALS
  *The frame and structural components are made from high-quality carbon steel, ensuring robustness and a long service life.
  *The palletizing arms are constructed using materials like stainless steel or aluminum alloys for lightweight yet strong support.
  *The drive system, including motors and gearboxes, utilizes components from reputable brands for reliable performance.

PRODUCT APPLICATION
  *The Bag Stacking Palletizer is widely used in various industries for the automated stacking of bagged products onto pallets, improving the efficiency of the entire packaging process.
  *It is particularly effective in environments where high-speed stacking is required, such as in bottling lines or in the production of packaged goods.
  *The palletizer's adaptability allows it to fit various production line layouts and can be integrated with other packaging equipment for a comprehensive packaging solution.

SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Bag Stacking Palletizer remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.

PROJECT VIDEO

ORDER PROCESS
