Versatile AGV for Various Industrial Applications with High Carrying Capacity and Precision Movement

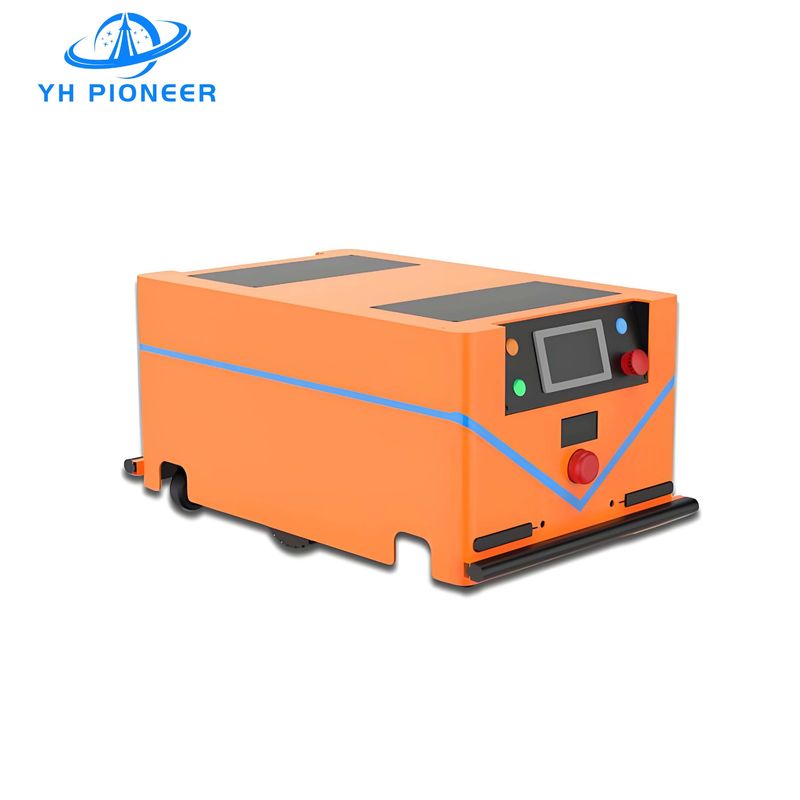

Automated Guided Vehicle (AGV)
We provide professional Automated Guided Vehicle (AGV), support the conveying of various types of bottles, and provide a variety of conveying types.
The Automated Guided Vehicle (AGV) is a cutting-edge autonomous material handling solution designed to enhance the efficiency and safety of logistics and manufacturing processes. This versatile system navigates along predefined pathways with precision, utilizing advanced guidance technologies to transport goods effectively and securely. The AGV represents the convergence of modern robotics, integrating computing, electronics, and mechanical engineering to serve a diverse range of industries.
PRODUCT PARAMENTERS
|
Item
|
Parameters
|
|
Dimensions
|
L880*W560*H212mm
|
|
Guide and control
|
Magnetic navigation and RFID tags
|
|
Moving speed
|
MAX 0.9m/s
|
|
Carrying capacity
|
200kg
|
|
Battery
|
DC24V, 30Ah, Ternary lithium battery
|
|
Charging method
|
Offline charging/automatic charging
|
|
Obstacle avoidance
|
Ultrasonic sensor and Bump sensor
|
|
Positioning accuracy
|
±5mm
|
|
Control function
|
Map editing/scripting/task chain editing/various API.etc
|
|
Communication
|
CAN/RS232/RS485/IO/WIFI
|
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
PRODUCT ADVANTAGE
*Constructed with a robust steel frame and high-quality components, the AGV ensures durability and consistent performance.
*It is designed for operation across various settings, from indoor manufacturing facilities to outdoor logistics centers, capable of withstanding diverse weather conditions and surface types.
*The vehicle's navigation system is highly adaptable, allowing for reprogramming to suit different layouts or operational requirements without physical path alterations.
*Advanced obstacle detection and avoidance technologies ensure safe operation in dynamic environments where unexpected obstacles may be present.
PRODUCT SPECIFICATIONS
Dimensions: 880mm in length, 560mm in width, and 212mm in height, providing ample space for various payload sizes.
Guidance and Control: Features magnetic navigation and RFID tags for reliable route tracking.
Moving Speed: Reaches a maximum speed of 0.9m/s for efficient material delivery.
Carrying Capacity: Built to handle payloads up to 200kg, suitable for a broad array of applications.
Battery: Powered by a 24V, 30Ah Ternary lithium battery for extended operation times.
Charging Method: Offers both offline and automatic charging capabilities.
Obstacle Avoidance: Equipped with ultrasonic and bump sensors for dependable collision avoidance.
Positioning Accuracy: Ensures ±5mm accuracy in positioning.
Control Functions: Includes map editing, scripting, task chain editing, and various API integrations.
Communication: Supports CAN, RS232, RS485, IO, and WIFI for seamless integration with existing systems.
PRODUCT MATERIALS
Frame: Made from steel for maximum durability and stability.
Drive Wheels and Follower Wheels: Crafted from wear-resistant materials to ensure a smooth ride and minimal maintenance.
Bumpers: Engineered with safety in mind, using impact-absorbing materials that protect both the vehicle and its cargo.
Sensors: Incorporate a combination of ultrasonic and physical sensors for comprehensive obstacle detection.
PRODUCT APPLICATION
*The AGV is applicable across a wide range of industries, including automotive, electronics, food and beverage, pharmaceuticals, and logistics, where it plays a key role in the automation of material handling.
*It excels in environments that demand high throughput and precise control over the movement of goods, such as automated storage and retrieval systems, assembly lines, and sorting operations.
*The AGV's adaptability makes it suitable for applications from straightforward transport tasks to complex logistics operations involving multiple handling points and intricate route planning.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Automated Guided Vehicle (AGV) remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
