We provide professional Roof Carton Filling Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

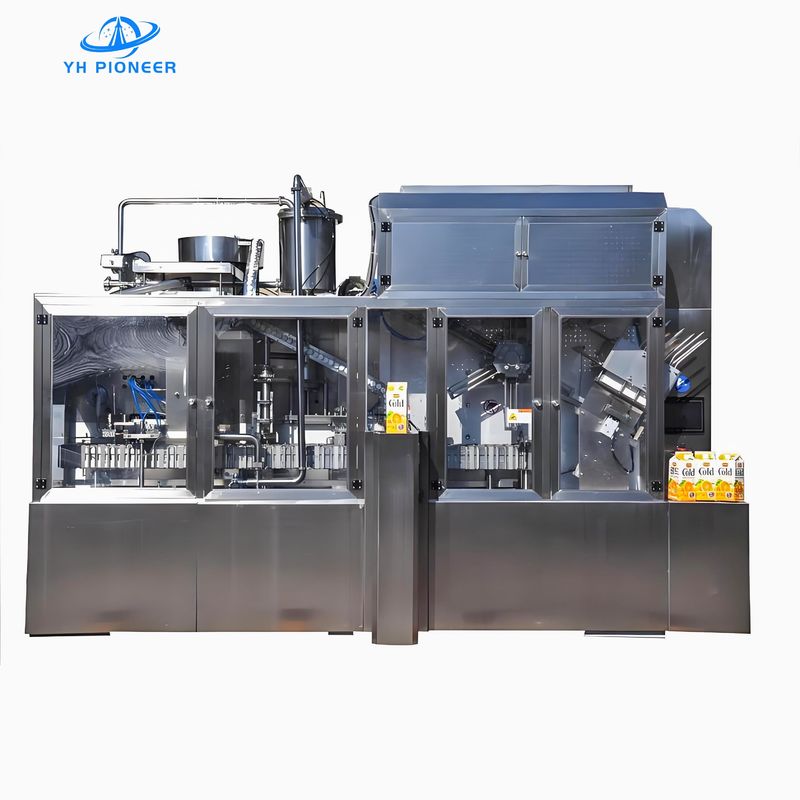

The Roof Carton Filling Machine is a high-performance solution designed for the automated production of cold-filled beverages such as juices and drinks. Utilizing modular design and an independent touchscreen control panel, this machine enables seamless switching between producing lidded or non-lidded cartons, ensuring long-term storage for products with fresh-seal lids. Its advanced integration of mechanical, electrical, and pneumatic systems guarantees stable operation, high efficiency, and user-friendly functionality.
TECHNOLOGICAL ADVANTAGE
Modular Flexibility: Adaptable design allows customization for lidded or non-lidded carton production.
High Automation: Fully automated processes from carton forming, filling, sealing, to output, minimizing manual intervention.
Precision Control: Equipped with micro-adjustment knobs and PLC systems for accurate filling volume and temperature regulation.
Durability: Stainless steel (304/316) construction for food-grade hygiene and corrosion resistance.
Energy Efficiency: Optimized heating and cooling systems reduce energy consumption.
Safety & Stability: Robust steel frame, safety sensors, and alarms ensure reliable operation.
PRODUCT SPECIFICATIONS
Rated Power: 27KW (3-phase, 380V, 50Hz).
Production Capacity: Up to 3,000 cartons/hour.
Container Compatibility: Standard cold-fill roof cartons (300ml, 500ml, 1000ml).
Air Consumption: 650L/min (7kg/cm²).
Cooling Water Requirements:
Chilled water (5°C): 22.8L/min (2.8kg/cm²).
Tap water (21°C): 4.6L/min (2.1kg/cm²).
Dimensions: 3300mm (L) × 2100mm (W) × 2300mm (H).
Weight: 3,500kg.
PRODUCT MATERIALS
Core Mechanisms: Heavy-duty steel frame with adjustable leveling feet.
Heating & Cooling Systems: High-precision electric heaters and water-cooled sealing units.
Pneumatic Components: Japanese-sourced cylinders, valves, and regulators for consistent performance.
Electrical Systems: PLC controllers, sensors, and inverters from Japan and Germany.
Drivetrain: Italian motors and precision bearings for smooth operation.
PRODUCT APPLICATION
Beverage Industry: Ideal for cold-filled juices, dairy products, and functional drinks.
Food Processing: Suitable for liquid products containing small particles (≤3mm diameter).
Packaging Solutions: Supports storage-ready cartons for extended shelf life.
Custom Production: Adaptable to diverse carton sizes and formats.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Roof Carton Filling Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
PRODUCT PARAMENTERS
| Rated Power |
27KW (3-phase 380V, 50Hz) |
| Production Capacity |
Up to 3,000 cartons/hour |
| Compatible Containers |
Standard cold-fill roof cartons (300ml, 500ml, 1,000ml) |
| Air Consumption |
650L/min (7kg/cm²) |
| 5°C chilled water |
22.8L/min (2.8kg/cm²) |
| 21°C tap water |
4.6L/min (2.1kg/cm²) |
| Weight |
3500KG |
| Dimensions |
3300mm (L) × 2100mm (W) × 2300mm (H) |
*It can be modified according to customer requirements.
