We provide professional Roof Carton Filling Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

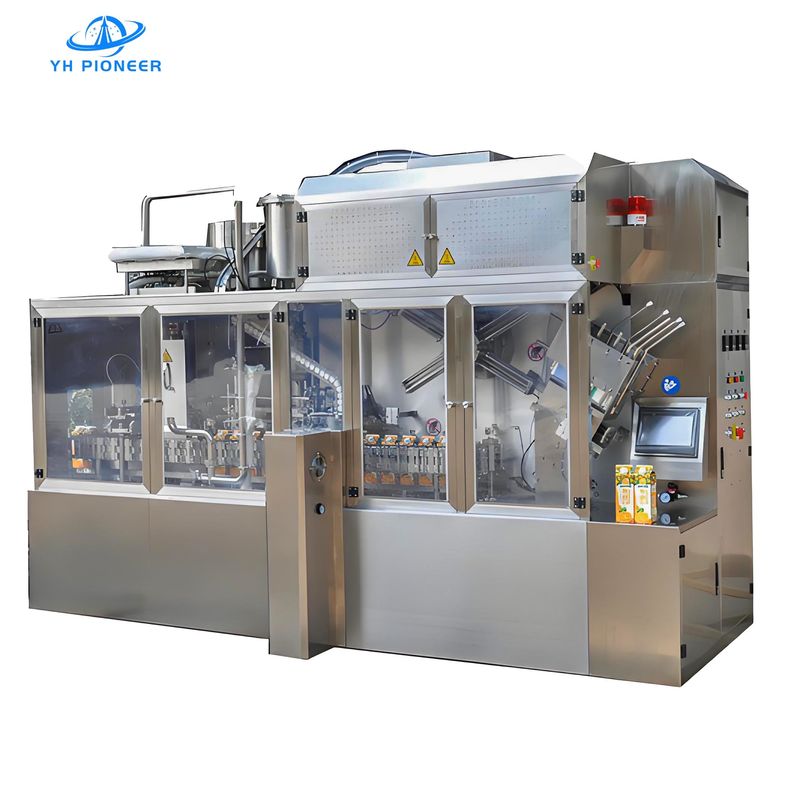

The Cold Filling Roof Carton Filling Machine is a highly efficient and automated solution designed for the production of cold-filled beverages such as juices and dairy products. Featuring modular design and intelligent control systems, it supports flexible production of roof-type cartons with or without lids, ensuring long-term storage. With stable performance, precise filling technology, and broad application scenarios, this machine serves as a core component in modern beverage production lines.
PRODUCT PARAMENTERS
| Rated Power |
27KW (3-phase 380V, 50Hz) |
| Production Capacity |
Up to 3,000 cartons/hour |
| Compatible Containers |
Standard cold-fill roof cartons (300ml, 500ml, 1,000ml) |
| Air Consumption |
650L/min (7kg/cm²)
|
| 5°C chilled water |
22.8L/min (2.8kg/cm²) |
| 21°C tap water |
4.6L/min (2.1kg/cm²) |
| Weight |
3500KG |
| Dimensions |
3300mm (L) × 2100mm (W) × 2300mm (H) |
*It can be modified according to customer requirements.
Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
TECHNOLOGICAL ADVANTAGE

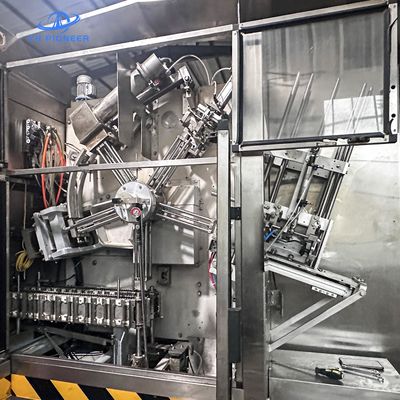

Full Automation: Seamless automation from carton feeding, forming, filling, to sealing, with user-friendly touch screen control.
Precision Filling: Single-piston positive-pressure filling system combined with liquid-level control ensures accurate dosing, suitable for beverages with particles (≤3mm diameter).
Flexible Configuration: Modular design allows quick switching between lidded and lidless production modes, and supports multiple carton sizes (adjustments required for volume changes).
Durability: Core components include international brands (e.g., U.S. indexers, Japanese pneumatic elements, Italian motors) for extended operational lifespan.
Energy Efficiency: Integrated water-cooling system (for carton cores, sealers, etc.) and temperature control technology reduce energy consumption.
Hygienic Design: Food-grade stainless steel (304/316) contact surfaces comply with sanitary standards; supports ultrasonic welding systems.
PRODUCT SPECIFICATIONS
Rated Power: 27KW (3-phase 380V, 50Hz)
Production Capacity: Up to 3,000 cartons/hour
Compatible Containers: Standard cold-fill roof cartons (300ml, 500ml, 1,000ml)
Air Consumption: 650L/min (7kg/cm²)
Cooling Water Consumption:
5°C chilled water: 22.8L/min (2.8kg/cm²)
21°C tap water: 4.6L/min (2.1kg/cm²)
Dimensions: 3300mm (L) × 2100mm (W) × 2300mm (H)
Weight: 3500KG
PRODUCT MATERIALS
Drive System: U.S.-made indexers, Italian motors, and Taiwanese heating modules.

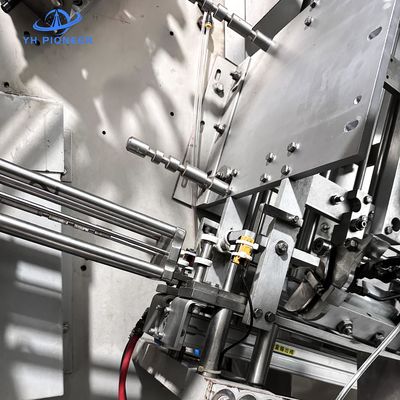

Pneumatic Components: Japanese cylinders, solenoid valves, and pressure regulators for precise motion control.
Control System: Japanese PLC controllers, inverters, and Taiwanese touch screens enable intelligent operation.
Sensors & Detection: Japanese fiber-optic sensors, rotary encoders, and German photoelectric switches ensure stable production.
Structural Materials: 304/316 stainless steel frame and beverage channels for corrosion resistance and easy cleaning.
Cooling System: Dual-loop design (chilled water and tap water) for efficient cooling of critical components.
PRODUCT APPLICATION
Food and Beverage: Ideal for packing boxes of food and beverages into cartons for distribution.
Pharmaceuticals: Suited for the careful handling and packing of pharmaceutical products to ensure safety and compliance with industry standards.
Cosmetics: Useful for the packaging of cosmetic products, ensuring that products are protected and presented well.
E-commerce: Perfect for the automated packing of products ordered online, improving the efficiency of order fulfillment processes.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Roof Carton Filling Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
