Carton Packing Machine For High Efficiency and Space Saving with Stainless Steel Frame and 220V Power
Carton Packing Machine
We provide professional Carton Packing Machine, support the conveying of various types of bottles, and provide a variety of conveying types.

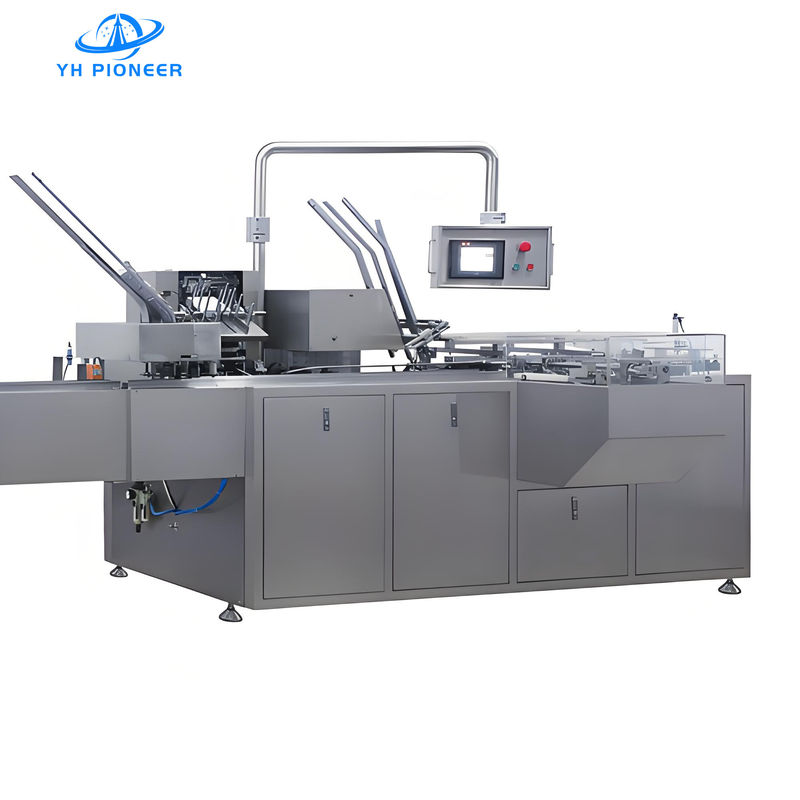

The Carton Packing Machine is an efficient and automated solution designed for the packaging of various products into cartons. This machine is particularly effective in industries where speed and accuracy are essential, providing a reliable method for packing items such as food products, pharmaceuticals, and consumer goods. Its user-friendly design and high-speed capabilities make it an invaluable asset in modern packaging operations.
High-Speed Packing: Capable of packing up to 60-120 boxes per minute, significantly enhancing production efficiency.
Precise Positioning: Advanced positioning systems ensure that each box is filled accurately, reducing errors.
High Automation: Fully automated operation from carton folding to sealing, minimizing manual intervention.
User-Friendly Operation: Simple interface and automatic carton database storage make it easy for operators to manage.
Safety Features: Equipped with tape breakage alarms and automatic stop functions when doors are opened, ensuring operator safety.
Easy Maintenance: Modular design allows for quick maintenance and replacement of components.
PRODUCT SPECIFICATIONS
Power: 220V 50/60HZ, 750W.
Box Length: Adjustable from 65mm to 180mm.
Box Width: Adjustable from 15mm to 92mm.
Box Height: Adjustable from 15mm to 60mm.
Air Supply: Operates at 0.5-0.7 MPa.
Machine Size: 2430mm (L) x 1370mm (W) x 1550mm (H).
Machine Weight: Approximately 650kg.
PRODUCT COMPONENT
Frame: Constructed from stainless steel to ensure durability and meet hygiene standards.
Pushing Mechanism: Utilizes a flat push structure for easy mold changes and quick adjustments.
Storage Hopper: Holds a supply of folded cartons for efficient operation.
Forming Device: Unfolds cartons from a flat state into a three-dimensional shape.
Sealing Device: Completes the sealing of the cartons after filling.
Control System: PLC and touchscreen control for automated operation.
Safety Guard Door: Allows for easy tape replacement while ensuring safety.
PRODUCT APPLICATION
Food Industry: Ideal for packaging food items such as snacks, candies, and beverages, ensuring hygiene and safety.
Pharmaceutical Industry: Used for packaging medicines and health supplements, adhering to strict hygiene standards.
Cosmetics Industry: Suitable for packaging cosmetics and personal care products.
Electronics Industry: Used for packaging electronic components and devices.
Logistics Industry: Enhances the efficiency of packing and handling goods in logistics operations.
SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Carton Packing Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.
PRODUCT PARAMENTERS
|
Power
|
220V 50/60HZ 750W
|
|
Box Length
|
65-180mm
|
|
Box Width
|
15-92mm
|
|
Box Height
|
15-60mm
|
|
Air Supply
|
0.5-0.7 Mpa
|
|
Machine Size
|
2430(L)*1370(W)*1550(H)
|
|
Machine Weight
|
About 650kg
|
*It can be modified according to customer requirements.
