Fully Automatic Carton Packing Machine With 30-100 Boxes / Min Speed And Stainless Steel Construction For Reliable Packaging

Fully Automatic Carton Packing Machine with 30-100 Boxes/Min Speed and Stainless Steel Construction for Reliable Packaging

Carton Packing Machine

We provide professional Carton Packing Machine, support the conveying of various types of bottles, and provide a variety of conveying types.

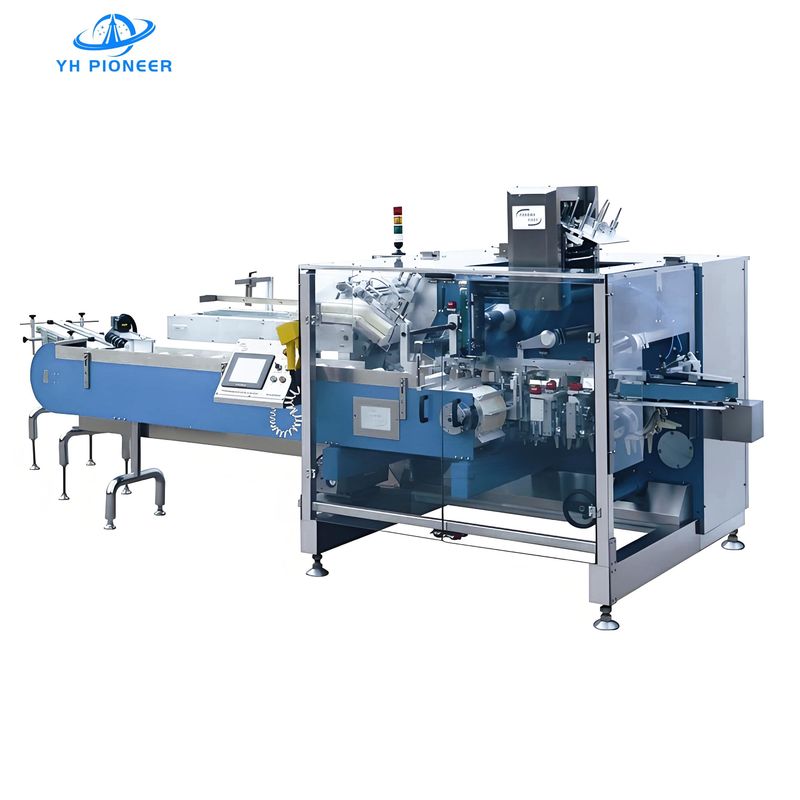

The Carton Packing Machine is designed for efficient and automated packaging of products into cartons. This machine is ideal for industries requiring high-speed and reliable cartoning solutions. It features a flat push mechanism that ensures smooth and precise packaging, making it a valuable addition to any production line.

---

---





---

PRODUCT  ADVANTAGE

*High-speed cartoning, capable of processing up to 120 boxes per minute.
*Precise positioning ensures accurate filling of each carton.
*Fully automated operation from carton folding to sealing.
*User-friendly interface with automatic carton database storage.
*Safety features include tape breakage alarms and automatic stop when the door is opened.
*Modular design for easy maintenance and part replacement.

PRODUCT SPECIFICATIONS
Encasing Speed: 30-100 boxes per minute.
Quality Requirement: 30-350g/㎡.
Dimension Range: (60-220)x(15-160)x(15-85)mm (LWH).
Dimension Range of All Boxes Packed: (45-400)x(15-260)x(15-100)mm (LWH).
Working Pressure: ≥0.6Mpa.
Machine Weight: Approximately 1000kg.
Overall Dimension: 3500x1400x1800 (LWH).
Power Supply: 220V 50HZ.
Total Power: 1.5kw.

PRODUCT COMPONENT

Frame: Constructed from stainless steel for durability and hygiene.

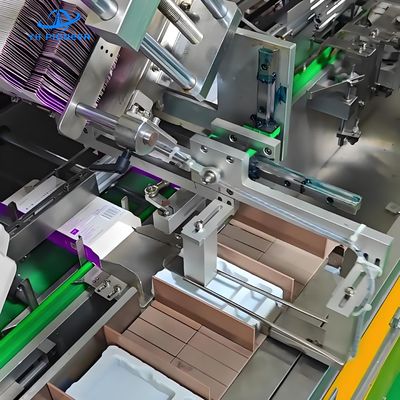

Pushing Mechanism: Flat push structure for easy mold change and quick size adjustment.
Carton Storage Hopper: Holds a supply of folded cartons.
Carton Forming Device: Unfolds the cartons from a flat state into a three-dimensional shape.
Flap Folding and Sealing Device: Folds and seals the bottom of the carton.
Control System: PLC and touchscreen control for automated operation.
Safety Guard Door: Equipped with a safety guard door for easy tape replacement.

PRODUCT APPLICATION
Food Industry: Ideal for packaging food products, ensuring hygiene and safety.
Pharmaceutical Industry: Used for packaging medicines, meeting GMP and other hygiene standards.
Cosmetics and Daily Chemicals Industry: Suitable for packaging cosmetics and toiletries.
Electronics Industry: Used for packaging electronic products.
Logistics Industry: Efficient for carton handling in logistics operations.

SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Carton Packing Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.

PRODUCT PARAMENTERS

*It can be modified according to customer requirements.

Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.
