Modular Conveyor Systems
Created with Pixso.

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing

Brand Name: YH PIONEER
MOQ: 1 Sets
Price: To be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets/month
Detail Information
Place of Origin:
China
Machine Dimensions:
Approx. 2200 × 1600 × 1800 Mm
Applicable Product Types:
Bottles, Cans, Jars, Boxes, And Other Containers
Packing Speed:
8–12 Cases/min (depending On Product Size)
Gripping System:
Pneumatic Or Mechanical Gripper
Case Size Range:
Customizable (e.g., L200–500 × W150–400 × H100–400 Mm)
Control System:
PLC + HMI Touchscreen
Power Supply:
AC 220V/380V, 50/60Hz
Air Pressure Requirement:
0.6–0.8 MPa
Packaging Details:
Wooden box
Highlight:

modular belt conveyor modular plastic belt conveyor

,

plastic modular belt conveyor modular plastic belt conveyor

Product Description

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing



Canned Fruits Carton Packer Machine



We provide professional Canned Fruits Carton Packer Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

The Canned Fruits Carton Packer Machine is a specialized packaging solution designed for the efficient and precise packing of canned fruits. This machine is engineered to handle a variety of container types, ensuring high-speed and reliable packaging operations. With its advanced automation features and user-friendly interface, it significantly enhances production efficiency while maintaining high packaging quality.


PRODUCT PARAMENTERS



Machine Dimensions Approx. 2200 × 1600 × 1800 mm
Applicable Product Types Bottles, cans, jars, boxes, and other containers
Packing Speed 8–12 cases/min (depending on product size)
Gripping System Pneumatic or mechanical gripper
Case Size Range Customizable (e.g., L200–500 × W150–400 × H100–400 mm)
Control System PLC + HMI touchscreen
Power Supply AC 220V/380V, 50/60Hz
Air Pressure Requirement 0.6–0.8 MPa
Material Stainless steel + coated carbon steel
Application Industries Food, beverage, cosmetics, household chemicals, etc.

*It can be modified according to customer requirements.



Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.


TECHNOLOGICAL ADVANTAGE

High Precision: Ensures accurate placement of canned fruits in cartons.
Quick Changeover: Easy switching between different container sizes and configurations.
Hygiene and Safety: Food-grade materials ensure compliance with hygiene standards.
High Automation: Full automation from container handling to cartoning and sealing.
Space Efficiency: Compact design for easy integration into existing production lines.


PRODUCT SPECIFICATIONS

Machine Dimensions: Approx. 2200 × 1600 × 1800 mm.
Applicable Product Types: Bottles, cans, jars, boxes, and other containers.
Packing Speed: 8–12 cases/min (depending on product size).
Gripping System: Pneumatic or mechanical gripper.
Case Size Range: Customizable (e.g., L200–500 × W150–400 × H100–400 mm).
Control System: PLC + HMI touchscreen.
Power Supply: AC 220V/380V, 50/60Hz.
Air Pressure Requirement: 0.6–0.8 MPa.
Material: Stainless steel + coated carbon steel.
Application Industries: Food, beverage, cosmetics, household chemicals, etc.


PRODUCT MATERIALS

Frame: Constructed from 304 or 316 stainless steel for durability and corrosion resistance.
Direct Contact Components: Food-grade 304 stainless steel for parts in direct contact with canned fruits.
Protective Enclosure: Transparent PC panels with a stainless steel frame.


PRODUCT APPLICATION

Food and Beverage Industry: Ideal for packing canned fruits, glass bottle juices, and other similar products.
Cosmetics and Household Chemicals: Suitable for packaging cosmetics, chemicals, and other similar products.
E-commerce and Logistics: Efficient for packing multi-specification gift boxes and promotional packs.





SERVIC and SUPPORT

We provide comprehensive maintenance services to ensure the Canned Fruits Carton Packer Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.

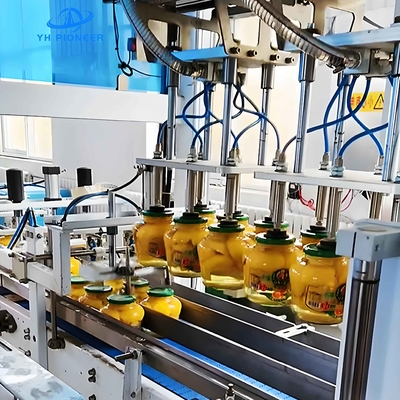

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing 1

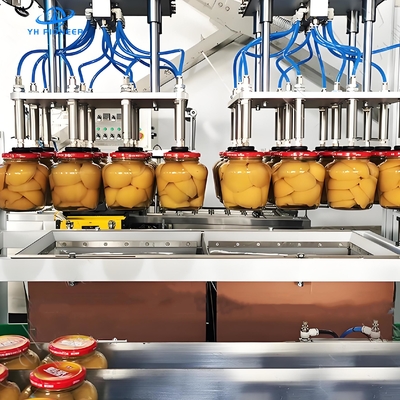

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing 2


ORDER PROCESS

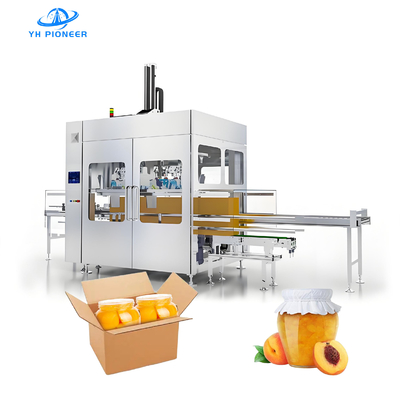

Fully Automatic Canned Fruits Carton Packer Machine for Fast and Reliable Fruit Packing 3
