Customizable Roller Conveyor Chain With POM And PP Material Wear Resistant

We provide professional Modular Belt with Rollers, support the conveying of various types , and provide a variety of conveying types.

The Modular Belt with Rollers is an advanced conveyor solution designed for heavy-duty applications that require robust material handling. This belt is particularly adept at transporting items such as boxes, cases, and tires, offering a smooth and efficient conveyance process in industries like packaging and automotive.

  * High-Strength and Wear-Resistant: The POM material provides the necessary strength and durability for heavy loads within a wide temperature range.
  * Flat Design: The flat chain plates are ideal for heavy material transport, offering a stable and even conveying surface.

  * Simple Structure and Stable Operation: The belt is designed for consistent performance and strong load-bearing capabilities, suitable for various materials.
  * High Abrasion Resistance: The POM material ensures a long service life, reducing the need for frequent replacements and maintenance costs.
  * Easy to Clean and Maintain: The belt meets hygiene standards for industries like food processing, with easy-to-clean surfaces.
  * Customizable: Can be tailored to specific application needs, such as adding side guards or skirts as required.

PRODUCT SPECIFICATIONS

Application: Suitable for transporting box containers, tires, and as a packaging conveyor belt.
Belt Material: Blue Polyoxymethylene (POM), with a temperature range of -30°C to +90°C.
Roller Material: Natural Polypropylene (PP) with a hint of Light Blue Thermoplastic Elastomer (TPE), usable within a temperature range of +1°C to +80°C.
Pin Material: Ø5 Polybutylene Terephthalate (PBT).
Roller Pin Material: Stainless Steel 304, Ø4.
Belt Load at 25°C: 27450 N/m.
Belt Open Area: 3%.
Weight: 19.86 Kg/m².
Standard Module Width Multiplier: 1-10.

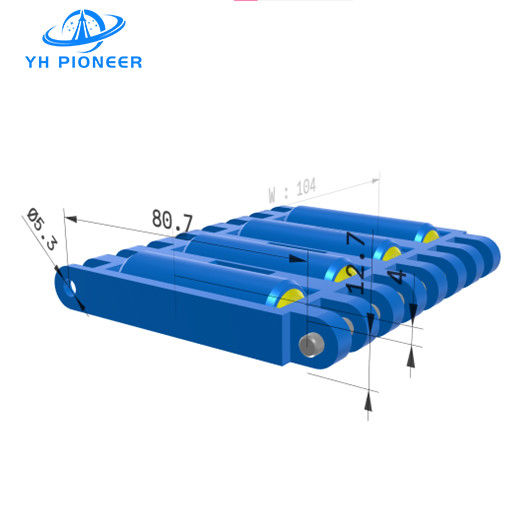

Belt Width: 104 mm.
Standard Pitch Multiplier: 1-5.
Standard Belt Width: W = 104 * N.

PRODUCT MATERIALS

  *Chain Plates: Made from POM, known for its high strength and wear resistance.
  *Rollers: Constructed with a combination of PP and TPE, ensuring smooth operation and durability.

PRODUCT  APPLICATIONS

  *Heavy Material Transport: For the conveyance of heavy items such as glass and plastic bottles, storage pallets, and on conveyor systems.
  *Automated Production Lines: Ideal for industries like food, beverages, and pharmaceuticals, where automation and reliability are crucial.
