Customizable Flat Top Modular Belt with Flight for Reliable Food Processing Conveying

We provide professional Flat Top Modular Belt with Flight, support the conveying of various types , and provide a variety of conveying types.

The Flat Top Modular Belt with Flight is an innovative conveyor belt designed for applications requiring the transportation and elevation of various fruits and vegetables. This belt is engineered to provide a smooth and stable conveyance, ensuring the efficient and gentle handling of delicate items.

  *Staggered Flight Design: The belt's flights are designed with a staggered pattern that effectively prevents lateral material movement or spillage during transit.
  *Increased Stability: The combination of flat top chain plates and flights adds stability and prevents material from spilling over.

  *Effective Material Containment: The staggered flights prevent horizontal movement of materials, maintaining stability.
  *Modular Design: Facilitates easy installation and maintenance, with the option for customization to meet specific requirements.
  *Diverse Material Options: Available in materials like POM and PP, catering to various environmental needs.
  *Low Maintenance and Long Lifespan: Compared to traditional belt conveyors, plastic chain plate conveyors require less maintenance and have a longer service life, reducing replacement frequency and costs.

PRODUCT SPECIFICATIONS

  *Application: Ideal for washing, elevating, and transporting various types of fruits.
  *Belt Material: Polyoxymethylene (POM), offering strength and rigidity within a temperature range of -30°C to +90°C.
  *Pin Material: Polypropylene (PP), ensuring durability and chemical resistance.

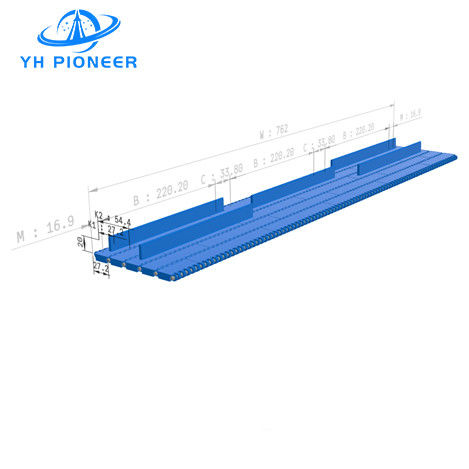

  *Belt Width: 762.0 mm, providing ample width for material transport.
  *Distance from End Face to Flight: 16.90 mm, allowing for a compact design.
  *Flight to Flight Spacing: 33.80 mm, offering sufficient space between flights for material support.
  *Center Distance Between Adjacent Flights (K1): 27.2 mm, and between staggered flights (K2): 54.4 mm, creating a staggered pattern for enhanced support.
  *Flight Height: 20 mm, providing the necessary elevation and containment for materials during transport.

PRODUCT MATERIALS

Chain Plates: Made from POM, known for its wear resistance and rigidity.
Flights and Sidewalls: Constructed from PP, ensuring a lightweight and durable support structure.

PRODUCT  APPLICATIONS

  *Food Processing: For the gentle and hygienic transport of fruits and vegetables during washing and processing.
  *Automated Production Lines: Suitable for industries such as food, beverages, pharmaceuticals, and more, where automation and cleanliness are critical.
