Durable PP Modular Belt with Rubber Surface for Low - Noise and Shock - Absorbing Transport

We provide professional Modular Belt with Rubber Top, support the conveying of various types , and provide a variety of conveying types.

The Modular Belt with Rubber Top, known for its seamless integration and robust performance, is designed to excel in applications requiring the transportation of small items such as cans, boxes, and bottles in packaging machinery. This belt is particularly adept at handling the demands of the packaging industry, where low noise and gentle handling are essential.

  *Rubber Top Design: The belt features a rubber top that provides excellent friction and a soft surface to prevent product damage.
  *Modular Construction: Easy to assemble and replace, reducing maintenance time and costs.
  *Universal Rollers: The rollers provide multi-directional rotation, allowing for flexible movement of items on the belt.

  *High Friction and Low Noise: The rubber surface offers improved traction and reduced noise during operation.
  *Versatility: Capable of handling various materials and suitable for use in different directions of movement, including turns and inclines.
  *Customizable: Available in various materials and specifications to meet different application requirements.
  *Reliable Performance: The durable construction ensures consistent performance even in challenging environments.

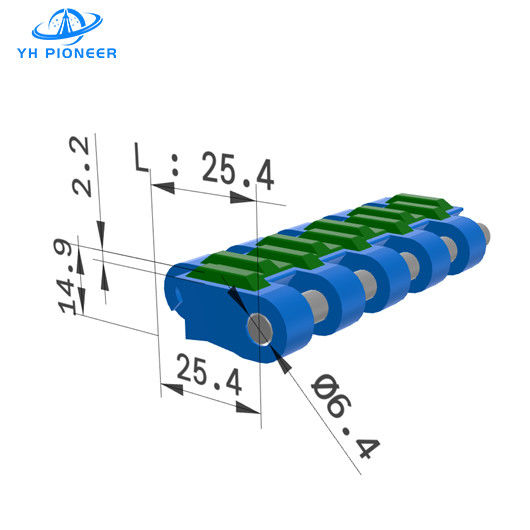

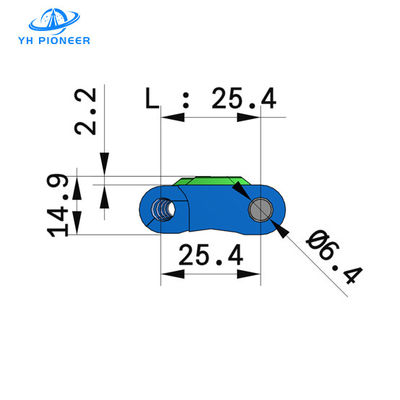

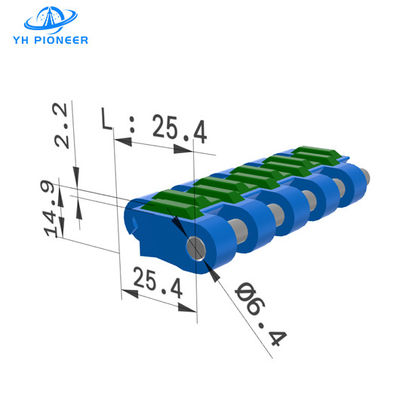

PRODUCT SPECIFICATIONS

  *Application: Ideal for various packaging machinery conveyors, especially for climbing conveyance of small-sized items like cans, boxes, and bottles.
  *Belt Material: Polyoxymethylene (POM) with a temperature range of -30°C to +90°C.
  *Pin Material: Polypropylene (PP).
  *Belt Load: Capable of withstanding a load of 8640N per meter for T-1500 belt chain.
  *Belt/Roller Color: Blue/Green.
  *Weight: 8.40 kg/m² for POM belt and 20 kg/m² for stainless steel 304 rollers.
  *Standard Module Width Multiplier: 1.

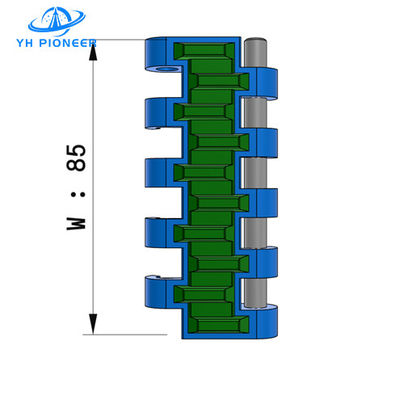

  *Belt Width: 85 mm.
  *Standard Pitch Multiplier: 1.
  *Standard Belt Width (MBT): W = 85 mm times the number of standard modules (N).

PRODUCT MATERIALS

  *Belt: Made from POM, a high-strength plastic known for its wear resistance and self-lubricating properties.
  *Rollers: Made from POM or stainless steel 304 for durability and low friction.

PRODUCT  APPLICATIONS

  *Beverage and Brewing Industry: For the gentle and efficient transport of bottles and cans.
  *Packaging Machinery: Especially useful in environments where turning conveyor is required for product sorting and packaging.
  *Food Processing: Suitable for the transportation of food items that require a gentle and hygienic conveyance.
