Flexible POM Modular Belt with Roller for Smooth and Reliable Material Transport

We provide professional Modular Belt with Roller with Bearings, support the conveying of various types , and provide a variety of conveying types.

The Modular Belt with Roller is an advanced conveyor belt system designed for applications requiring minimal friction and high stability during the conveyance process. This belt is particularly well-suited for the packaging industry, where the gentle and efficient transportation of items is essential.

  *Low Friction Coefficient: The combination of plastic chain plates and metal rollers results in reduced friction during conveyance, ensuring smooth operation.
  *Durability and Stability: Constructed from POM for the plates and stainless steel for the rollers and pins, providing a reliable and robust chain belt.

  *High Flexibility and Speed: The roller design allows for quick directional changes, making it suitable for high-speed conveying.
  *Thermal and Chemical Resistance: The plastic chain plates are resistant to heat, acids, alkalis, and static electricity, suitable for diverse industrial environments.
  *Low Maintenance: The system requires minimal upkeep, and the assembly does not need lubrication, reducing maintenance costs.
  *Customizability: The chain belt can be tailored to meet different application requirements, with customizable plate widths and roller specifications, enhancing system adaptability and flexibility.

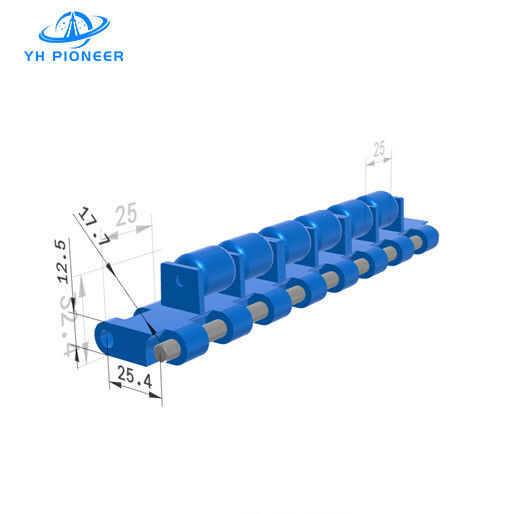

PRODUCT SPECIFICATIONS
  *Application: Ideal for heat shrink film packaging and light-duty box conveying in the packaging machinery industry.
  *Belt Material: Polyoxymethylene (POM), with a temperature range of -30°C to +90°C.
  *Pin Material: Polypropylene (PP).
  *Belt Load at 25°C: 36000N per meter for POM.
  *Belt/Roller Color: Coffee color.
  *Weight: 26.70 kg/m².
  *Standard Module Width Multiplier: 0 (custom width).
  *Belt Width: 200 mm, with a standard belt width formula: W = 200 + 50*N.
  *Standard Pitch Multiplier: 1.

PRODUCT MATERIALS

  *Chain Plates: Made from POM, known for its strength and rigidity.
  *Rollers and Pins: Crafted from stainless steel for durability and resistance to various loads.

PRODUCT  APPLICATIONS

  *Heat Shrink Film Packaging: For the smooth and careful handling of packaged goods.
  *Light-Duty Box Conveying: Suitable for the transportation of lightweight boxes in packaging machinery.
  *Beverage, Pharmaceutical, Cosmetic, and Food Industries: Effective for the conveyance of bottles, cans, medicine, cosmetics, and food products, accommodating various conveying needs, including straight lines, turns, and inclines.
