High - Friction Snap - on Conveyor Chain with Natural Rubber Clamps for Reliable Bottle Handling

We provide professional Snap-on Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.

The Snap-on Conveyor Chain is a specialized chain designed for the handling and transportation of bottles and cans in automated production environments. Engineered for high performance in turning and climbing conveyance, this chain offers a reliable solution for the movement of containers through various production processes.

  *High Friction Clamps: The natural rubber clamps provide excellent grip and secure holding of bottles, preventing slippage or droppage during conveyance.
  *Temperature Resistance: Capable of stable operation in a wide temperature range from -40°C to +90°C, suitable for harsh environments.
  *Customizable Material and Specifications: Available in different materials and specifications to meet various load and conveying length requirements.
  *Easy Maintenance: The modular design allows for simple and quick part replacement.

  *Efficient and Reliable: Offers a high-performance chain drive solution suitable for multiple industrial uses.
  *Versatile: Adaptable to different environments and requirements due to the choice of materials and design flexibility.

PRODUCT SPECIFICATIONS

  *Application: Suitable for turning and climbing conveyance of bottles and cans.
  *Card Plate Material: Polyoxymethylene (POM).
  *Clamp Material: Natural rubber.
  *Base Chain: Standard 12A roller chain, available in carbon steel and stainless steel.
  *Maximum Speed: 50 meters/minute with lubricant; 30 meters/minute with dry conditions.
  *Working Load: 3200N for carbon steel, 1600N for stainless steel.
  *Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel.
  *Packaging: Each piece is 1.524 meters long.

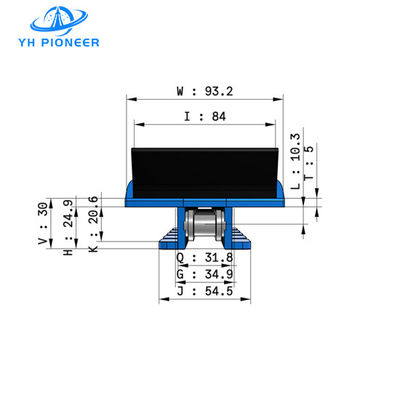

  *Width: 93.2 mm.
  *Rubber Width: 84 mm.
  *Weight: 4.475 kg/m.
  *Reverse Bending Radius: 150 mm.
  *Turning Radius: 500 mm.

PRODUCT MATERIALS

  *Card Plates: Made from POM, known for its strength and rigidity.
  *Clamp Blocks: Crafted from natural rubber for high friction and durability.
  *Base Chain: Constructed with carbon steel or stainless steel for robust support and resistance to various loads.

PRODUCT  APPLICATIONS

  *Bottle and Can Conveyance: Ideal for the turning and climbing conveyance of bottles and cans in production lines.
  *Industrial Automation: Provides a high-efficiency and reliable chain drive solution for various industrial applications, including food, beverages, pharmaceuticals, and more.
