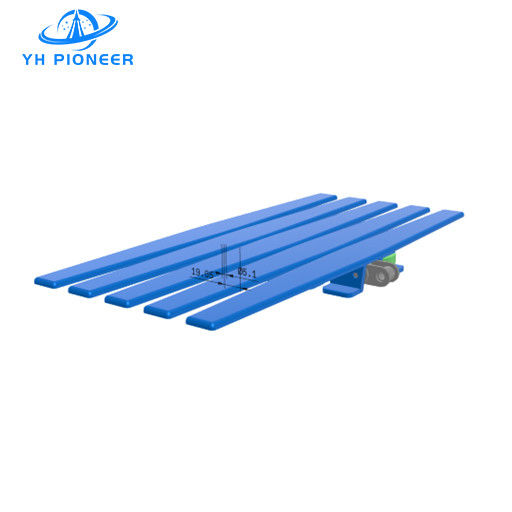

Heavy - Duty Plastic Snap - on Sideflex Chain with Bearings with Carbon Steel Base for Reliable Spiral Transport

We provide professional Plastic Snap - on Sideflex Chain with Bearings, support the conveying of various types , and provide a variety of conveying types.

The Plastic Snap-on Sideflex Chain with bearings is a specialized conveyor chain designed for spiral turning and elevating applications. This chain is engineered for high performance in automated conveyor systems, particularly in industries such as food processing, logistics, and packaging where the reliable and efficient transportation of goods is essential.

  *Durable Construction: The chain's card plates are made from POM, a material known for its strength and rigidity, suitable for a wide range of temperatures.
  *Standard Roller Chain Design: The base chain is a standard 12A roller chain, available in carbon steel and stainless steel to cater to varying load and environmental requirements.
  *Snap-on Design: The chain features a snap-on design that effectively secures materials and prevents them from sliding or falling during transportation.

  *High Load Capacity: With a working load of 3200N for carbon steel and 1600N for stainless steel, the chain is capable of handling heavy loads.
  *High-Speed Operation: Designed for high-speed conveyance, reaching up to 50 meters/minute with lubrication, and 30 meters/minute with dry conditions.
  *Extended Conveying Length: The chain can support long conveying distances, with a maximum length of 30 meters for carbon steel and 24 meters for stainless steel.
  *Easy Installation and Maintenance: The snap-on chain plates are easy to install and replace, reducing maintenance costs.
  *Flexible Length Adjustment: The chain length can be adjusted according to specific needs, with standard chain lengths typically being 1.524 meters.
  *Suitable for Harsh Environments: The chain exhibits excellent wear resistance and corrosion resistance, making it suitable for adverse conditions.

PRODUCT SPECIFICATIONS

  *Product Name: Plastic Snap-on Sideflex Chain with bearings
  *Application: Suitable for spiral turning conveyors
  *Material: Polyoxymethylene (POM), coffee color, with a temperature range of -30°C to +90°C
  *Base Chain: Standard 12A roller chain, available in carbon steel and stainless steel
  *Maximum Speed: 50 meters/minute with lubricant; 30 meters/minute with dry conditions
  *Working Load: 3200N for carbon steel, 1600N for stainless steel
  *Maximum Conveying Length: 30 meters for carbon steel, 24 meters for stainless steel
  *Packaging: Each piece is 1.524 meters long
  *Reverse Bending Radius: 150 mm
  *Turning Radius: 610 mm

PRODUCT MATERIALS

  *Card Plates: Made from POM, offering a balance of strength and flexibility within the specified temperature range.
  *Base Chain: Constructed with carbon steel or stainless steel, ensuring durability and resistance to various loads.

PRODUCT  APPLICATIONS

Spiral Turning Elevating Conveyors: Ideal for the transportation of items such as pallets, boxes, and bagged goods in a spiral or turning motion.
