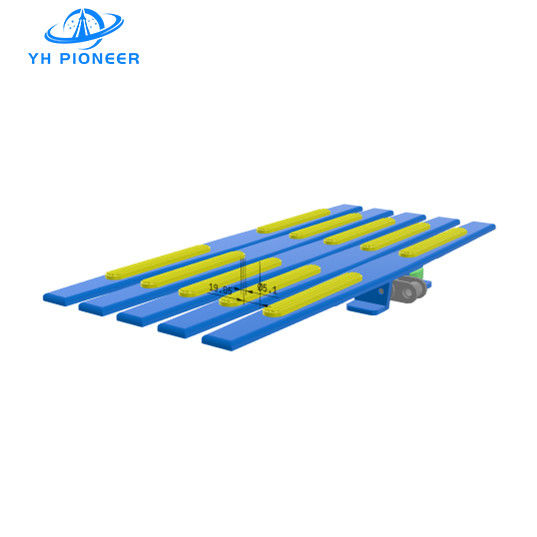

High Friction Buckle Chain Turning Conveyor Plate TPE Surface For Material Handling

We provide professional Buckle Chain Type Turning Conveyor Plate Surface TPE with Bearings, support the conveying of various types , and provide a variety of conveying types.
The Buckle Chain Type Turning Conveyor Plate Surface TPE with Bearings is a specialized conveyor chain designed for applications that demand high wear resistance and low noise operation. This chain is particularly well-suited for spiral turning conveyance in industries such as food and beverage, where hygiene and gentle handling are critical.

  * High Wear Resistance: The TPE surface enhances the chain's durability and reduces friction, suitable for heavy-duty conveying tasks.
  * Low Noise Operation: The rubber surface helps to absorb vibrations, ensuring a quieter operation.
  * Customizable Design: The height and form of the flights can be adjusted to meet specific material handling requirements.
  * Temperature Adaptability: The POM material ensures reliable performance across a wide temperature range.

  * Enhanced Friction: The TPE surface provides additional grip, reducing the risk of product slippage during turning and elevation.
  * Durability: The combination of POM and TPE materials ensures the chain is long-lasting, even under continuous operation.
  * Maintenance Friendly: The modular design allows for easy replacement of individual components, reducing downtime and maintenance costs.
  * Versatility: The chain's design can be customized to fit various production line layouts and requirements.

PRODUCT SPECIFICATIONS

  * Product Name: Buckle Chain Type Turning Conveyor Plate Surface TPE with Bearings
  * Application: Ideal for spiral turning conveyance in the food and beverage industry.
  * Belt Material: Polyoxymethylene (POM) with a temperature range of -30°C to +80°C.
  * Pin Material: Polypropylene (PP).
  * Belt Load: Capable of withstanding a load of 8800 N per meter at 21°C.
  * Belt Color: Blue with an orange TPE surface.
  * Standard Module Width Multiplier: 1.
  * Belt Width: 304.8 mm.
  * Center Distance Between Flights: 38.1 mm multiplied by the number of standard modules.
  * End Face to Flight Distance: 25.2 mm.
  * Weight: 5.77 kg/m².
  * Reverse Bending Radius: 150 mm.
  * Minimum Turning Center Radius: 610 mm.

PRODUCT MATERIALS

  * Chain Plate: Made from POM, known for its wear resistance and self-lubricating properties.
  * Flights and Sidewalls: Constructed from the same POM material for consistency and durability.
  * Bearing Material: May include POM or 6200Z (bearing steel) for high load-bearing applications.

PRODUCT  APPLICATIONS
  * Food Processing: For the gentle and hygienic transport of food products through turns and spirals.
  * Beverage Industry: Suitable for handling glass bottles, cans, and other containers in high-speed turning and long-distance conveying lines.
  * Pharmaceutical and Chemical Industries: Capable of handling small containers and vials with precision and care.
