Flexible Hook - Type Mesh Belt Chain with PP for Customizable Elevation and Conveying Solutions

We provide professional Curve Flight Modular belt, support the conveying of various types , and provide a variety of conveying types.

The Curve Flight Modular belt is a specialized conveyor belt designed for applications requiring the transportation of various food items and packaging machinery. This belt is engineered to provide a seamless and efficient conveyance, especially suitable for spiral conveying of products that require gentle handling and precise elevation.

  *High Load Capacity: The POM material ensures the belt can handle heavy loads, making it suitable for robust applications.
  *Low Noise Operation: The plastic construction results in a quiet operation, contributing to a better working environment.
  *Chemical Resistance: The PP pins provide resistance to various chemicals, suitable for use in environments where chemical exposure is possible.
  *Easy Maintenance: The modular design of the belt allows for easy cleaning and maintenance, reducing downtime.
  *Customizability: The belt can be customized to fit specific conveyor systems, including adjustments to width and length.

  *Durability: The combination of POM and PP materials provides excellent wear resistance and a long service life.
  *Sanitary Design: Easy to clean and sanitize, the belt meets high standards for hygiene in food processing and packaging.
  *Versatility: Adaptable to various working environments, including those that are exposed to high temperatures, moisture, or chemicals.

PRODUCT SPECIFICATIONS

  *Application: Ideal for conveying a wide range of food items and for use in packaging machinery, ensuring smooth and safe transport.
  *Belt Material: Polyoxymethylene (POM), a robust plastic known for its wear resistance and low friction, with a temperature range of -30°C to +90°C.
  *Pin Material: Polypropylene (PP), offering excellent chemical resistance and dimensional stability.
  *Belt Load: Capable of withstanding a load of 8800 N per meter, ensuring the belt can handle substantial weights.
  *Belt Color: White, for easy visibility and inspection.

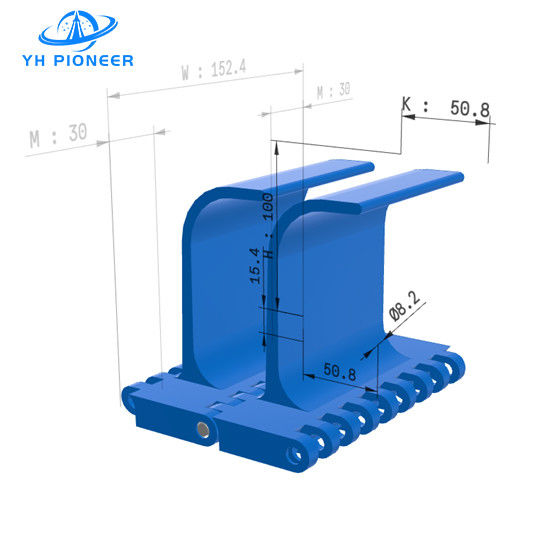

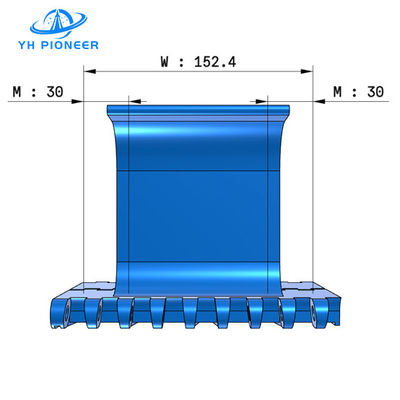

  *Standard Module Width Multiplier: 1, with a standard belt width of 152.4 mm multiplied by the number of standard modules (N).
  *Belt Width: 152.4 mm.
  *Pitch: Standard pitch as per the series.
  *Belt Weight: 5.77 kg/m².
  *Reverse Bending Radius: 50 mm, allowing for tight turns without damaging the belt.
  *Minimum Turning Radius (MTR): 150 mm, providing flexibility in conveyor design.

PRODUCT MATERIALS
