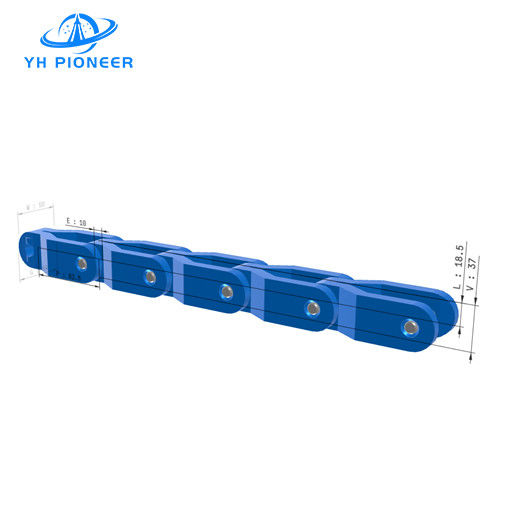

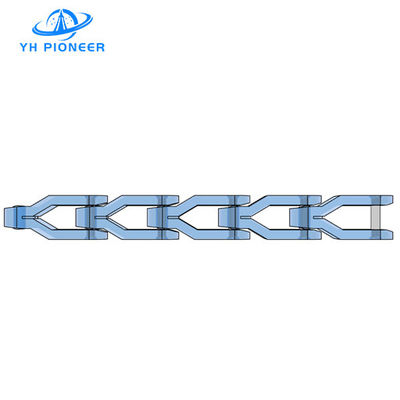

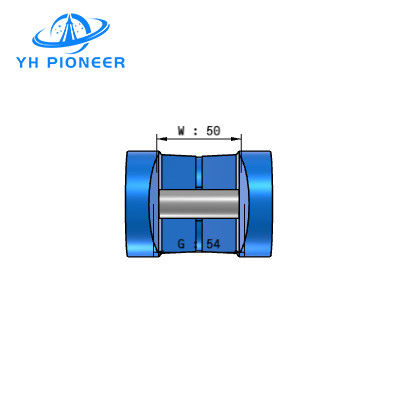

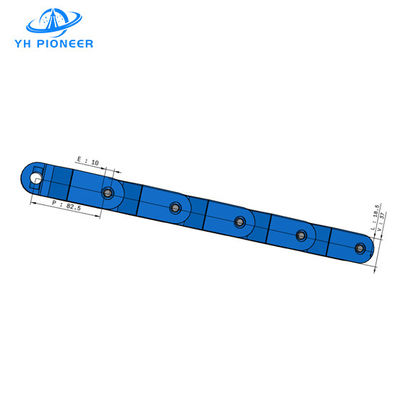

Industrial Case Conveyor Chain For Tight Radius Turns And S Shaped Conveying Paths

We provide professional Case Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.

The Case Conveyor Chain is a high-performance conveyor chain system designed for the transportation of boxed and bagged items in a variety of industries. With its unique design that allows for spiral conveying and S-shaped conveying, it offers flexibility and efficiency in material handling.

  *High-Strength Flexibility: The chain serves as a robust carrier for conveying loads, suitable for both straight and curved paths.
  *Compact and Agile: With a small pitch and flexible movement, it is ideal for the transportation of light and regularly shaped industrial products.

  *Adaptability and Economy: The conveyor chain offers excellent adaptability and cost-effectiveness, ensuring smooth and efficient operation.
  *Low Noise and Wear: Designed for low noise operation and minimal wear, contributing to a longer service life.
  *Easy Cleaning and Maintenance: The materials and design facilitate easy cleaning and maintenance, meeting hygiene standards.
  *High-Strength Load Capacity: Special connections and pins ensure the chain can handle high workloads even in adverse environments.
  *Small Turning Radius: Capable of tight turns with a small reverse turning radius, suitable for applications where space is limited.

PRODUCT SPECIFICATIONS

  *Product Name: Case Conveyor Chain
  *Chain Plate Material: Polyoxymethylene (POM), blue, with a temperature range of -30°C to +90°C
  *Cover Plate Material: Reinforced Nylon (PA6+GF30%), yellow, with a temperature range of -40°C to +120°C
  *Pin Material: Cold-rolled austenitic stainless steel, Ø8mm
  *Chain Plate Width (CW): 114.3 mm
  *Weight: 2.60 kg/m
  *Working Load (WL): 4000 N
  *Reverse Bending Radius (LR): 390 mm
  *Minimum Turning Radius (RR): 710.0 mm

PRODUCT MATERIALS
