High - Flex Case Conveyor Chain with POM Panels and Stainless Steel Axles for Reliable Material Transport
Case Conveyor Chain
We provide professional Case Conveyor Chain, support the conveying of various types , and provide a variety of conveying types.
The Case Conveyor Chain is a robust and versatile conveying solution designed for heavy-load box transportation. This chain is engineered to handle the demands of industrial environments where the reliable movement of large and heavy items is required.
Adaptability and Economy: The conveyor chain offers excellent adaptability and cost-effectiveness, ensuring smooth operation even in challenging conditions.
*High-Strength Flexibility: The chain offers a high-strength flexible link suitable for both straight and curved conveyor systems.
*Compact and Agile: With a small pitch and agile movement, it is ideal for the transportation of lightweight, regularly shaped industrial products.
*Low Noise and Wear: Designed for low noise operation and minimal wear, contributing to a longer service life.
*Easy Cleaning and Maintenance: The materials and design facilitate easy cleaning and maintenance, meeting hygiene standards.
*High-Strength Load Capacity: The special connections and pins ensure the chain can handle high workloads in adverse environments.
*Small Turning Radius: Capable of tight turns with a small reverse turning radius, suitable for applications where space is limited.
PRODUCT SPECIFICATIONS
*Product Name: Case Conveyor Chain
*Material: Polyoxymethylene (POM), white in color, with a temperature range of -30°C to +90°C
*Pin Material: Cold-rolled austenitic stainless steel
*Working Load: 6400N
*Maximum Speed: 30 meters/minute with lubricant; 20 meters/minute with dry conditions
*Packaging: 12 links per meter

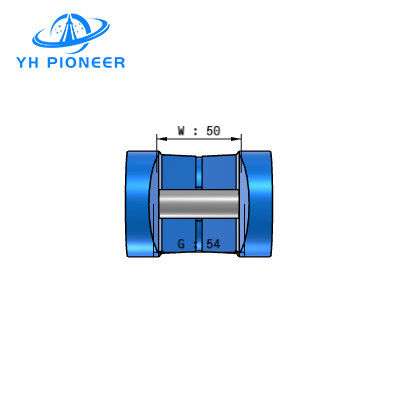

*Width (W): 50.0 mm
*Weight: 1.75 kg/m
*Reverse Bending Radius: 75 mm
*Turning Radius (TR): 450 mm
PRODUCT MATERIALS
*Chain Plate: Made from POM, known for its strength and rigidity, suitable for heavy-duty applications.
*Pin Axle: Crafted from cold-rolled austenitic stainless steel for enhanced durability and corrosion resistance.
PRODUCT APPLICATIONS
*Heavy-Load Box Conveyance: Effective for transporting heavy boxes made of materials such as paper, wood, or plastic.
*Food Industry: Particularly promoted in the food sector for its ability to handle regular and irregular shapes of packaging boxes and material bins.
PRODUCT PARAMENTERS
|
Application
|
Mainly suitable for heavy duty cartons conveying. |
|
Material
|
POM, color white, operating temperature -30°C~+90°C |
|
Pin material
|
Stainless steel |
|
Working load
|
6400N |
|
Maximum Speed
|
30 m/min lubricant ; 20 m/min dry |
|
Package
|
12 PCS/meter |
|
Width
|
50.0mm |
|
Weight
|
1.75kg/m |
|
opposite bending raduis
|
75mm |
|
Sideflex Radius
|
450mm |
*It can be modified according to customer requirements.
