Sanitized Bezel Plastic Chain for Easy Cleaning and Maintenance in Food and Pharmaceutical Industries
Bezel Plastic Chain
We provide professional Bezel Plastic Chain, support the conveying of various types , and provide a variety of conveying types.
The Bezel Plastic Chain is an innovative conveyor chain designed for applications requiring low noise and light weight material handling. With its modular design and flexibility, it is widely used across various industries, including chemical, electronics, and pharmaceutical manufacturing equipment.
*Modular Design: Allows for flexible assembly, with flanks that can be interlocked using hinged pins, becoming part of the conveyor belt.
*Enhanced Strength: The structure of the plastic chain is designed to increase the strength of the conveyor belt, accommodating various sizes and weights of materials.
*Lightweight and Low Noise: The engineering plastic construction and stainless steel pins contribute to the chain's light weight and low noise operation.
*Chemical Resistance: The plastic chain can withstand the effects of various chemicals, making it suitable for diverse industrial settings.
*Easy to Clean and Maintain: The plastic material is easy to clean, meeting hygiene standards, and is simple to maintain.
*Self-Lubricating: The plastic chain has self-lubricating properties, reducing friction and wear during operation.
*Easy Installation: The lightweight plastic chain facilitates easy installation and replacement.
*Smooth Operation: The chain operates with low noise, providing a smooth and comfortable conveying experience.
*Safety: The design of the plastic chain prevents material spillage or deviation during transportation.
*Adaptability: The plastic chain can be customized to meet different application requirements, demonstrating strong adaptability.
PRODUCT SPECIFICATIONS
*Product Name: Bezel Plastic Chain
*Chain Plate Material: Polyoxymethylene (POM), white in color, with a temperature range of -30°C to +90°C
*Pin Material: Cold-rolled austenitic stainless steel
*POM Material Load Capacity: 440N for 40P
*Packaging: Each piece is 1.524 meters long
*Collation: Compatible with 08A standard roller chain sprockets

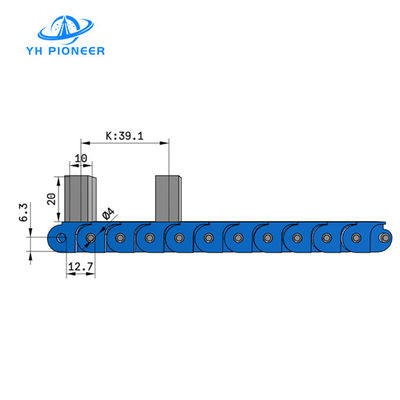

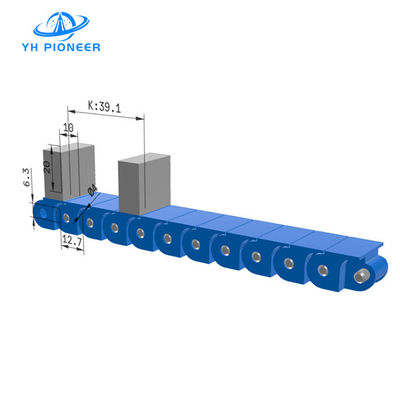

*Width (W): 20 mm
*Center Distance Between Flanks (K): 39.1 mm
PRODUCT MATERIALS
*Chain Plate: Made from POM, a high-strength engineering plastic known for its chemical resistance and wear resistance.
*Axles: Crafted from cold-rolled austenitic stainless steel for durability and corrosion resistance.
PRODUCT APPLICATIONS
Food and Beverage: For horizontal or inclined transportation where cleanliness and hygiene are critical.
Pharmaceutical: Suitable for environments that demand high standards of cleanliness and chemical resistance.
Chemical Industry: Capable of handling corrosive materials without degradation.
PRODUCT PARAMENTERS
| Product name |
bezel plastic chain
|
| Application |
It is mainly suitable for conveying items with low noise and light weight, and is widely used in chemical, electronic and pharmaceutical manufacturing equipment
|
| Material |
The plastic chain is made of POM, the color is white, and the POM use temperature is -30°C~+90°C |
| Temperature |
The operating temperature is -30℃～90℃.
|
| Pin material |
Cold austenitic stainless steel |
| Width |
20 |
| Curved rail width |
100 |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
