Durable Sideflex Magnetic Curved Track Rail with UHMW-PE for High - Stability Material Handling

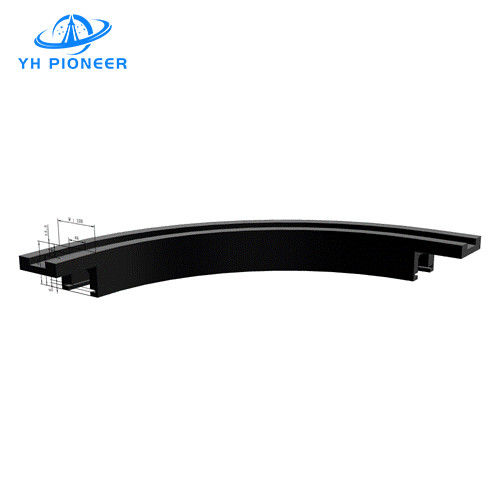

Sideflex Magnetic Curved Track Rail
We provide professional Sideflex Magnetic Curved Track Rail, support the conveying of various types , and provide a variety of conveying types.
The Sideflex Magnetic Curved Track Rail is a specialized conveyor guidance system designed for applications requiring precise lateral bending and turning of materials. This heavy-duty system is engineered to provide a seamless and reliable material flow, particularly suitable for environments where turning conveyor is necessary.
*Magnetic Guidance: The integrated magnetic properties ensure the stability and precision of the chain during转弯 (turning) maneuvers, enhancing the overall reliability of the conveyor system.
*High Load Capacity: Designed to handle substantial loads, with a working load of 3200N at 25°C.
High-Performance Material: The UHMW-PE offers exceptional wear resistance and self-lubricating properties, contributing to a low-maintenance operation.
*Temperature Adaptability: The material's wide temperature range suitability ensures consistent performance in various climates.
*Speed Efficiency: Capable of high-speed operation, with a maximum speed of 50 meters per minute when lubricated, and 30 meters per minute without lubrication.
*Durability: The UHMW-PE material and magnetic guidance contribute to a long-lasting, reliable performance.
*Low Noise Operation: The combination of materials and design results in a quiet operation, improving the work environment.
*Customizability: Available in various widths and configurations to suit specific conveyor system requirements.
PRODUCT SPECIFICATIONS
*Product Name: Sideflex Magnetic Curved Track Rail
*Material: Ultra-high molecular weight polyethylene (UHMW-PE) combined with magnetic components and fasteners, in a black color scheme.
*Temperature Range: Operates effectively within a temperature range of -30°C to 90°C.

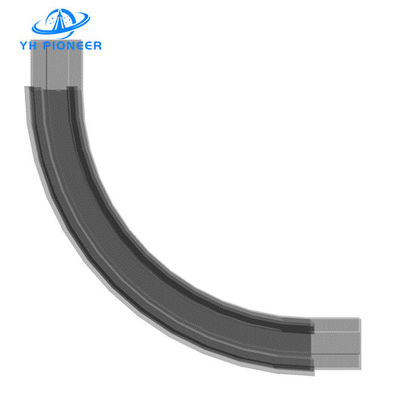

*Bend Angle: Capable of a 90-degree bend, allowing for sharp directional changes.
*Minimum Center Radius (R): R500, ensuring a smooth curve without abrupt changes.

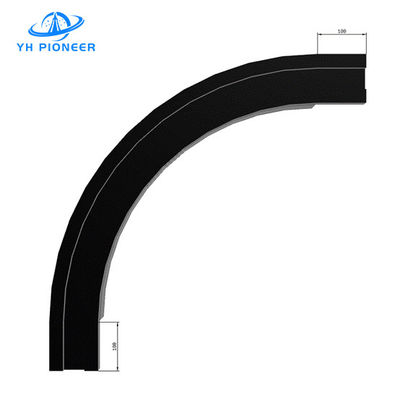

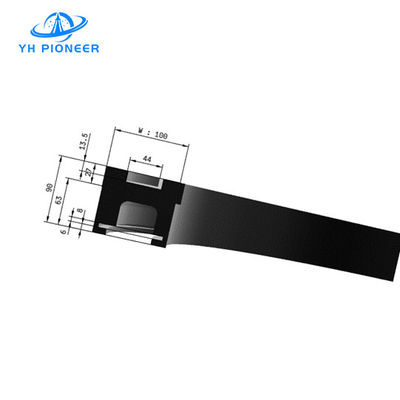

*Width (W): 100 mm, providing ample surface area for material support.
PRODUCT MATERIALS
*Chain Plate: Made from UHMW-PE, known for its high strength and durability.
*Magnetic Components: Embedded within the chain plate for enhanced guidance and stability.
PRODUCT APPLICATIONS
*Automated Production Lines: Especially in industries where turning conveyor is required for efficient material routing.
*Heavy-Duty Material Handling: Suitable for the transportation of heavy loads such as steel, automotive parts, and large packaged goods.
*Industrial Automation: Ideal for automated systems where precise control of material flow is essential.
PRODUCT PARAMENTERS
| Rail type |
Single-row curved rail |
| Product name |
Sideflex Magnetic Curved Track Rail
|
| Material |
Ultra-high molecular weight polyethylene + magnet + screw set, color black |
| Temperature |
The operating temperature is -30℃～90℃.
|
| Bent rail angle |
15-90° |
| Minimum center radius of curved rail |
R500 |
| Curved rail width |
100 |
*It can be modified according to customer requirements.
