Robust Sideflex Curved Track Rail for Heavy - Duty Material Handling with UHMW-PE Durability

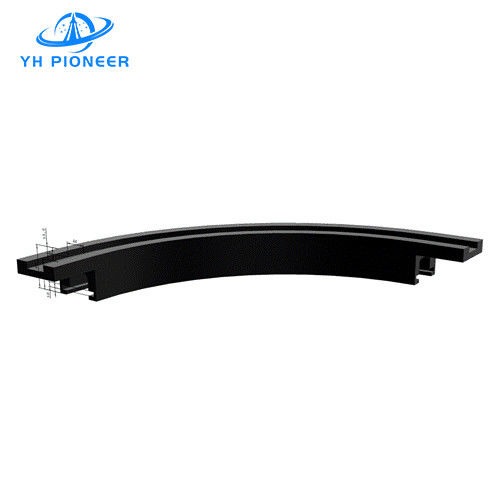

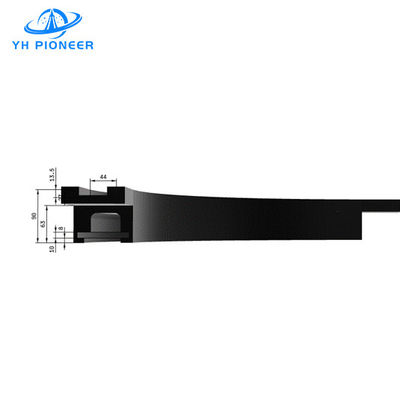

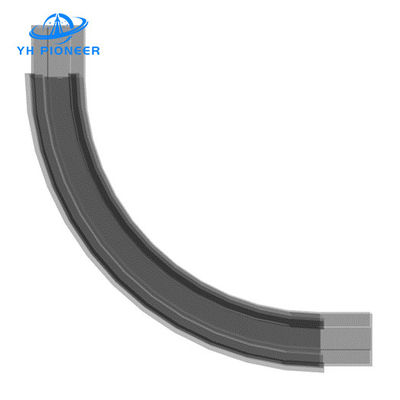

Sideflex Heavy Duty Curved Track Rail
We provide professional Sideflex Heavy Duty Curved Track Rail, support the conveying of various types , and provide a variety of conveying types.
The Sideflex Heavy Duty Curved Track Rail is a robust guidance system designed for heavy-duty applications requiring lateral bending and precise directional changes in material handling. Engineered for compatibility with sideflex chains, this curved track rail is tailored for industries where complex conveying paths and high load capacities are essential.
*High-Performance Material: Constructed from UHMW-PE, known for its exceptional wear resistance, self-lubricating properties, and chemical stability, making it suitable for diverse industrial environments.
*Versatile Bending Capability: Designed to work with a range of bend angles from 15° to 90°, allowing for customized turns to fit various conveyor layouts.
*Precision Guidance: Ensures the stability and accuracy of the sideflex chain during转弯 (turning) maneuvers, crucial for maintaining product flow and system efficiency.
*Durability: The UHMW-PE material offers excellent wear resistance, extending the service life of the track rail.
*Low Maintenance: The self-lubricating nature of UHMW-PE reduces friction and wear, leading to lower maintenance costs and energy consumption.
*Chemical Resistance: Capable of withstanding various chemical environments, providing good corrosion resistance.
*Temperature Adaptability: Operates effectively within a wide temperature range, from -30°C to +90°C.
*Easy Installation: The track rail is designed for ease of installation and adjustment, accommodating different production line configurations.
*Efficiency Improvement: The precise turning guidance enhances the overall operational efficiency of the conveyor system.
PRODUCT SPECIFICATIONS
*Track Type: Single-row track for focused guidance.
*Product Name: Sideflex Heavy Duty Curved Track Rail
*Material: Ultra-high molecular weight polyethylene (UHMW-PE), complemented with magnets and fastening screws, in black color.
*Temperature Range: Suitable for use in temperatures ranging from -30°C to 90°C.
*Bend Angle: 90 degrees, accommodating sharp turns in the conveying system.
*Minimum Center Radius: R500

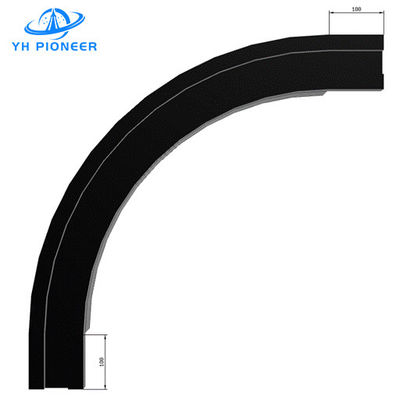

*Bend Rail Width: 100 mm
PRODUCT MATERIALS
*Rail Material: Ultra-high molecular weight polyethylene (UHMW-PE) for superior wear resistance and low friction.
*Additional Components: Magnets and screws for secure attachment and guidance.
PRODUCT APPLICATIONS
*Automated Production Lines: For guiding heavy loads through precise curves without disrupting the flow of materials.
*Material Handling Systems: In environments where heavy items need to be transported around corners or in circular patterns, such as in warehousing and logistics.
*Industrial Automation: Particularly useful in automated systems that involve complex routing of materials, including assembly lines and sorting systems.
PRODUCT PARAMENTERS
| Rail type |
Single-row curved rail |
| Product name |
Sideflex Heavy Duty Curved Track Rail
|
| Material |
Ultra-high molecular weight polyethylene + magnet + screw set, color black |
| Temperature |
The operating temperature is -30℃～90℃.
|
| Bent rail angle |
15-90° |
| Minimum center radius of curved rail |
R500 |
| Curved rail width |
100 |
*It can be modified according to customer requirements.
