Modular Curved Track Rail for Versatile and Scalable Conveyor System Integration
Curved Track Rail
We provide professional Curved Track Rail, support the conveying of various types , and provide a variety of conveying types.

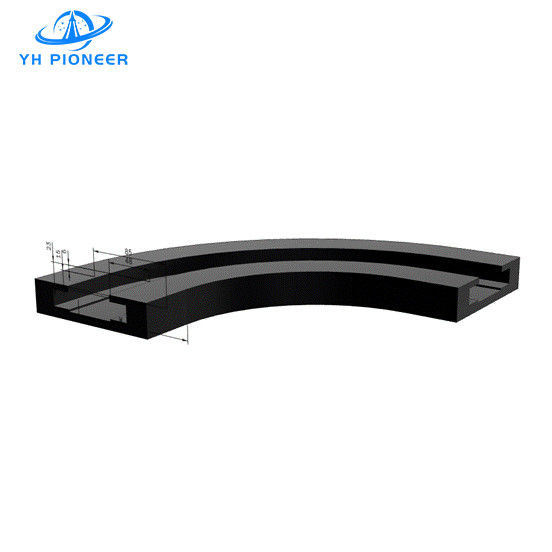

The Curved Track Rail is a precision-engineered guidance system designed to provide a reliable and accurate motion path for material handling and conveyor applications. This rail system is crafted for integration into conveyors that require curved routing, offering a seamless solution for complex material flow management.
*Precision Guidance: The rail is designed to offer exact linear or curved motion guidance, essential for maintaining product flow in automated systems.
*High Rigidity and Accuracy: The structure of the track rail and its components ensure stable and precise movement, reducing the risk of derailment or misalignment.
*Modular Design: Allows for flexible layout configurations, accommodating various production line requirements and facilitating system expansions.
*High Load Capacity: Capable of withstanding substantial loads, making it suitable for heavy-duty industrial applications.
*Enhanced Efficiency: The precision of the curved rail contributes to the overall efficiency and reliability of the conveyor system.
*Customizable Layout: The design allows for tailored solutions that can be adapted to specific production needs.
*Low Maintenance: Easy to clean and maintain, ensuring consistent performance over time.
PRODUCT SPECIFICATIONS
*Track Type: Single-row track for focused guidance.
*Product Name: Curved Track Rail
*Material: Ultra-high molecular weight polyethylene (UHMWPE), black in color.
*Temperature Range: Suitable for use in temperatures ranging from -30°C to 90°C.
*Bend Angle: 90 degrees, allowing for sharp and precise directional changes.
*Minimum Center Radius: R200
*Bend Rail Width: 130 mm
PRODUCT MATERIALS
*Rail Material: Constructed from ultra-high molecular weight polyethylene, known for its strength, wear resistance, and low friction characteristics.
*Bearing Elements: May include rolling elements such as balls or wheels that enable smooth sliding motion along the rail.
PRODUCT APPLICATIONS
*Automated Production Lines: For guiding conveyors through precise curves without disrupting the flow of materials.
*Material Handling: In systems that require the transportation of goods around corners or in circular patterns.
*Packaging: Particularly useful in packaging lines where products need to be redirected or sorted in a curved path.
*Assembly Processes: Provides the necessary guidance for automated assembly lines that involve movement around obstacles or in confined spaces.
PRODUCT PARAMENTERS
| Rail type |
Single-row curved rail |
| Product name |
Curved Track Rail
|
| Material |
The material is ultra-high molecular weight polyethylene, the color is black |
| Temperature |
The operating temperature is -30℃～90℃.
|
| Bent rail angle |
15-90° |
| Minimum center radius of curved rail |
R200 |
| Curved rail width |
130 |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
