Robust Sideflex Roller Table Top Chain for Precise Curved Material Handling in Automation

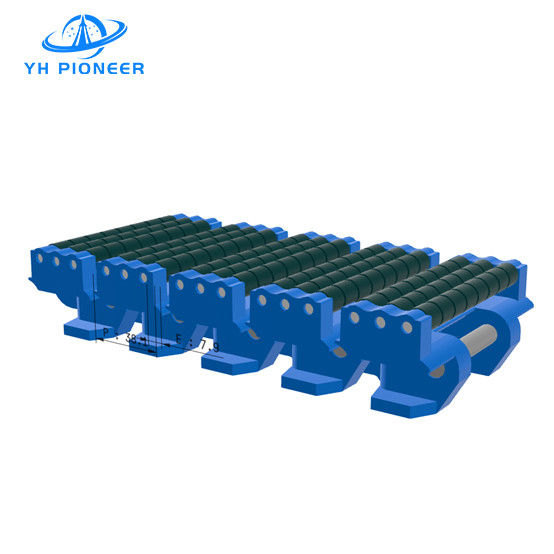

Sideflex Roller Table Top Chain
We provide professional Sideflex Roller Table Top Chain, support the conveying of various types , and provide a variety of conveying types.
The Sideflex Roller Table Top Chain is an innovative conveyor chain designed for high-speed straight and long-distance conveying applications, especially in environments requiring lateral bends, such as side bending conveyors for shrink wrap packaging. This chain is engineered to provide a seamless and efficient material flow even in complex routing systems.
*High-Speed Capability: Designed for rapid straight-line conveyance, suitable for applications like food industry dish conveyance.
*Lateral Bending Design: Features large gaps for the necessary freedom of movement, guided by rails to achieve curved conveyance.
*Flexible Turning: Capable of achieving various turning angles, ensuring smooth material flow.
*Rugged Operation in Harsh Environments: With wear and corrosion-resistant properties, ensuring stable operation in adverse conditions.
*Smooth Conveyor Surface: Reduces pressure on products during transport, protecting them from damage.
*Low Friction Material: The balls are made from a low-friction material, reducing noise and friction, and enhancing conveying efficiency.
*High Working Load: With a substantial working load capacity of 3200N and a maximum conveying length of 12 meters, it is well-suited for heavy-duty applications.
PRODUCT SPECIFICATIONS
*Product Name: Sideflex Roller Table Top Chain
*Material of the Chain Plate: Polyoxymethylene (POM), dark green in color, with a temperature range of -30°C to 90°C
*Ball Material: POM
*Pin Material: Cold-rolled austenitic stainless steel
*Working Load: 3200N; maximum conveying length of 12 meters
*Packaging: 26 pieces per meter
*Width: 95.2 mm
*Ball Width: 79.0 mm
*Mass: 3.70 kg/m
*Reverse Bending Radius: 101 mm
*Turning Radius: 610 mm
PRODUCT MATERIALS
*Chain Plate: Made from POM, offering strength and rigidity with a temperature-resistant range.
*Balls: Also made from POM, ensuring low friction and durability.
*Pin: Crafted from cold-rolled austenitic stainless steel, providing high corrosion resistance and strength.
PRODUCT APPLICATIONS
*Pharmaceutical Industry: Suited for the controlled and precise movement of pharmaceutical products through complex routes, including turns and bends, ensuring safety and hygiene.
*Automated Packaging Lines: Perfect for the side bending and turning of packaged goods in the final stages of packaging processes, such as shrink wrapping.
*Logistics and Warehousing: Utilized in sorting and distribution centers for the efficient routing of packages and goods through conveyor systems that require turns or merges.
*Canned and Bottled Goods Handling: Effective for the handling of canned and bottled products in beverage production, where high-speed and reliable lateral movement is necessary.
*General Manufacturing: Employed in various manufacturing sectors for the assembly and transportation of parts and finished products that require lateral bends in the conveyor path.
*Specialized Machinery: Used in custom machinery and equipment that require specific motion profiles, including turning conveyors for unique product handling solutions.
PRODUCT PARAMENTERS
| Sideflex Roller Table Top Chain |
|
Application
|
it is suitable for heat-shrink packaging products sideflex conveying. |
|
Material
|
POM, color: Dark Green,Work temp: -30°C~90°C. |
|
Pin material
|
Stainless steel |
|
Modular belt work load
|
3200N; the maximum conveying length is 12M |
|
Package
|
26pcs/Meter as one package |
|
Width
|
95.2mm |
|
Roller width
|
79.0mm |
|
Weight
|
3.70kg/m |
|
opposite bending raduis
|
101mm |
|
Sideflex Radius
|
610mm |
*It can be modified according to customer requirements.
