Precision Engineered Modular Belt with Roller for Smooth and Continuous Material Flow

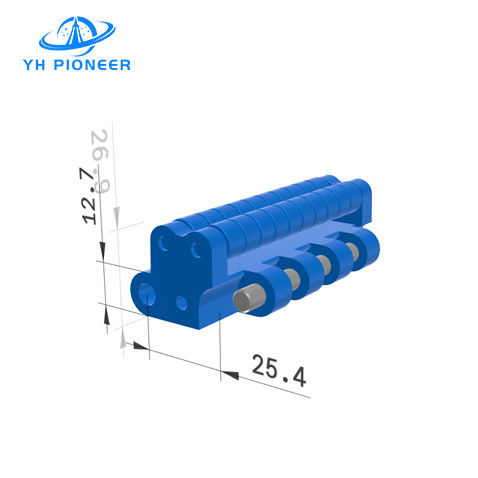

Modular Belt with Roller
We provide professional Modular Belt with Roller, support the conveying of various types , and provide a variety of conveying types.
The Modular Belt with Roller is an innovative conveyor solution designed for high-efficiency material transport. This belt is engineered with integrated rollers that facilitate smooth and rapid movement of products, particularly suitable for applications such as straight-line conveyance in heat shrink film packaging.
*Rolling Contact: The inclusion of roller bearings or tracks reduces sliding friction, allowing for smoother operation.
*High Load Capacity: Capable of withstanding heavier loads while maintaining low operational friction.
*Suitable for High-Speed Applications: The rollers minimize energy loss, making them ideal for high-speed conveyance.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), with a temperature range of -30°C to 90°C.
*Pin Material: Polypropylene (PP) for the pins, with roller pins made from stainless steel.
*Belt Load Capacity: 28000N per meter for POM.
*Belt/Roller Color: Dark green.
*Weight: 30.5 kg/m^2.
*Standard Module Width Multiplier: 1.
*Standard Pitch Multiplier: 1.
*Belt Width: 85 mm.
*Standard Belt Width: W = 85 mm multiplied by the number of standard modules (N).
PRODUCT MATERIALS
*Belt: Constructed from POM, a high-strength engineering plastic that is also lightweight and resistant to a variety of chemicals.
*Pins: Made from PP, which is resistant to corrosion and provides a stable support for the belt structure.
*Rollers: The roller pins are crafted from stainless steel, chosen for its hardness, durability, and resistance to wear.
PRODUCT APPLICATIONS
*Industrial Automation: For efficient and reliable material handling.
*Food Processing: Gentle on products and easy to clean, suitable for food industry applications.
*Packaging: Particularly useful in straight-line conveyance for heat shrink film packaging where high speeds are required.
*Logistics: Enhances the efficiency of material movement in warehousing and distribution centers.
PRODUCT PARAMENTERS
|
Apply to
|
it is suitable for heat shrinkable package products conveying. |
|
Belt Raw material
|
Polyoxymethylene (POM), operating temperature -30°C~90°C |
|
Pin material
|
Belt pin is PP, Roller Pin is stianless steel. |
|
Modular belt work load
|
POM is 28000N/M |
|
Modular belt and roller color
|
Dark green |
|
Weight
|
30.5kg/m^2 |
|
The multiply of standard modular belt width
|
1-10
|
| The multiply of standard pitch |
1-5 |
|
Modular belt width
|
85mm |
|
Modular belt width
|
Standard Modular Belt Width: W=85*N |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
