Durable POM Perforated Modular Belt with Friction for Long - Lasting and Low - Maintenance Conveying
Perforated Modular Belt with Friction
We provide professional Perforated Modular Belt with Friction, support the conveying of various types , and provide a variety of conveying types.
The Perforated Modular Belt with Friction is an advanced conveyor belt system designed for high-speed, heavy-load transportation. This belt features a unique surface with protrusions that minimize contact areas, facilitating the elevation and conveyance of materials with reduced friction.
*Reduced Friction: The belt's surface with protrusions effectively decreases friction between the belt and the conveyed materials, suitable for delicate or abrasion-sensitive products.
*High Load Capacity: The POM material offers a high working load capacity, making it ideal for heavy-load transportation requirements.
*Chemical Resistance: PP pins provide good chemical resistance, suitable for use in acidic environments and the chemical industry.
*Temperature Adaptability: Both POM and PP materials are stable over a wide temperature range, ensuring reliable operation in various conditions.
*Low Maintenance: The wear resistance and self-lubricating properties of the materials reduce maintenance needs and costs.
*Long Service Life: The durable materials and design contribute to an extended service life for the conveyor belt.
*Versatility: Suitable for a wide range of industrial applications, particularly in the automation of food, pharmaceutical, and chemical industries.
*Easy to Clean: The smooth surface is easy to clean, meeting hygiene and sanitation standards.
PRODUCT SPECIFICATIONS
*Belt Material: Polyoxymethylene (POM), suitable for temperatures ranging from -30°C to 90°C.
*Pin Material: Polypropylene (PP).
*Belt Load Capacity: 17280N per meter for POM.
*Belt Opening Rate: 8% for optimal ventilation and material release.
*Belt Color: Available in white or coffee color.
*Weight: 13.3 kg/m^2.
*Standard Module Width Multiplier: 1.

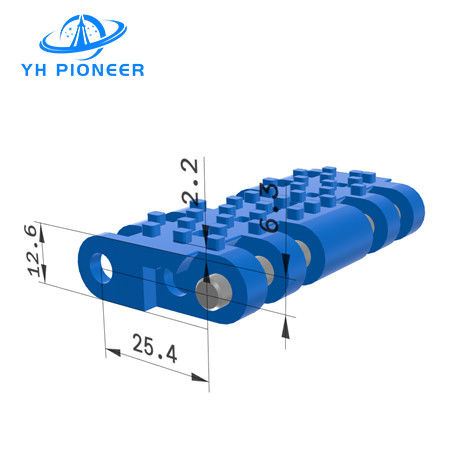

*Belt Width: 76.2 mm.
*Standard Pitch Multiplier: 1.

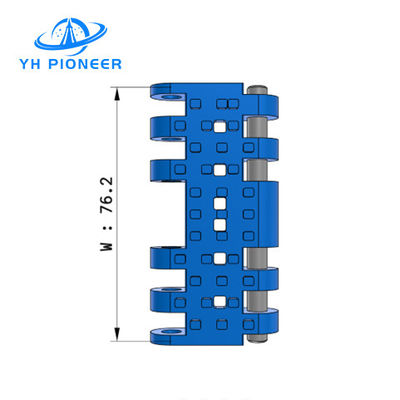

*Standard Belt Width: W = 76.2 mm multiplied by the number of standard modules (N).
PRODUCT MATERIALS
*Belt: Constructed from POM, known for its wear resistance, self-lubrication, and high load-bearing capacity.
*Axles: Made from PP, ensuring chemical resistance and stability within a specific temperature range.
PRODUCT APPLICATIONS
*The Perforated Modular Belt with Friction is ideal for:
*High-Speed Conveying: In applications requiring rapid transportation of goods with minimal friction.
*Heavy-Load Elevation: Designed to handle the demands of lifting and moving heavy loads efficiently.
*Food Processing: Gentle on food products and easy to clean, suitable for food industry applications.
*Pharmaceutical Industry: Meets the hygiene and precision requirements of pharmaceutical manufacturing.
*Chemical Industry: Resistant to chemicals and suitable for use in corrosive environments.
PRODUCT PARAMENTERS
|
Apply to
|
It is mainly used in heavy-duty elevating conveying machine. |
|
Belt Raw material
|
Polyoxymethylene (POM), operating temperature -30°C~90°C |
|
Pin material
|
Polypropylene(PP) |
|
Modular belt work load
|
POM is 17280N/M |
|
Modular belt opening rate
|
8% |
|
Modular Belt Color
|
White/Coffee |
|
Weight
|
13.3kg/m^2 |
*It can be modified according to customer requirements.
