Conveying Systems Sideflex Small Radius Chain With Precise Bending

We provide professional Sideflex Small Radius Chain, support the conveying of various types , and provide a variety of conveying types.

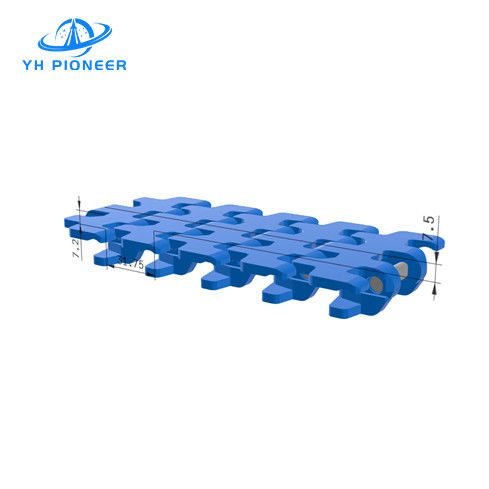

The Sideflex Small Radius Chain is a specialized conveyor chain designed for applications requiring tight turns and 360-degree rotations in light-load conveyor systems. This innovative chain offers a unique combination of flexibility and strength, making it ideal for use in various industries where space is at a premium and complex conveying routes are necessary.

  * High-Speed Operation: Capable of operating at speeds up to 50 meters per minute with lubrication and 30 meters per minute in dry conditions, ensuring efficiency in high-throughput environments.
  * Light-Load Conveying: Designed for light-load applications, making it suitable for handling items that do not require heavy-duty transportation.
  * Tight Turning Capability: With a small opposite bending radius of 50 mm and a sideflex radius of 150 mm, the chain can navigate tight corners and perform 360-degree rotations with ease.

PRODUCT SPECIFICATIONS
  * Width: 82.6 mm
  * Weight per Meter: 0.86 kg/m
  * Pitch: Standard for the series (to be confirmed)
  * Pin Diameter: Standard for the series (to be confirmed)
  * Opposite Bending Radius: 50 mm
  * Sideflex Radius: 150 mm

PRODUCT MATERIALS
