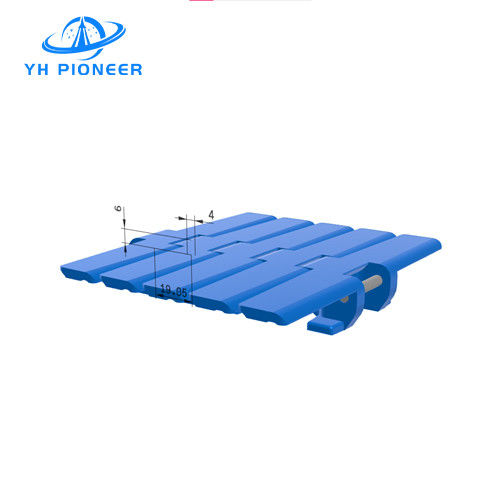

Toothed Side Bending Chain-810
We provide professional Toothed Side Bending Chain-810, support the conveying of various types , and provide a variety of conveying types.
The 810TAB Series Toothed Side Bending Chain, is a specialized conveyor chain designed for the food and beverage industry. It is particularly suited for the transportation of items with small diameters, such as PET bottles, aluminum cans, and similar containers.
*High-Speed Capability: With a maximum speed of 50 meters per minute with lubricant and 30 meters per minute without, it is designed for high-efficiency operations.
*Robust Load Capacity: Capable of withstanding a working load of 780N at 25°C, making it suitable for heavy-duty conveying tasks within a maximum length of 8 meters.
PRODUCT SPECIFICATIONS
*Width: 114.3 mm
*Weight per Meter: 0.94 kg/m
*Pitch: 25.4 mm (standard for this series)
*Pin Diameter: Typically matches the series standards
*Reverse Bending Radius: 30 mm
*Turning Radius: 400 mm
PRODUCT MATERIALS
*Plate Material: Polyoxymethylene (POM), a durable engineering plastic in white color, with a service temperature range of -30°C to +90°C.
*Pin Material: Cold-rolled austenitic stainless steel, providing excellent corrosion resistance and strength.
PRODUCT APPLICATIONS
Plate Material: Polyoxymethylene (POM), a durable engineering plastic in white color, with a service temperature range of -30°C to +90°C.
Pin Material: Cold-rolled austenitic stainless steel, providing excellent corrosion resistance and strength.
PRODUCT PARAMENTERS
| Mainly used in food and beverage industry, such as bottles and cans conveying. |
| POM. Work temp:-30°C to 90 °C |
| Stainless steel |
| 50M/min lubrication, 30M/min dry |
| 780N (25°C),Max.length 8m |
| One meter = 53 pieces |
| 114.3mm |
| 0.94 kg/m |
| 30 |
| 400 |
*It can be modified according to customer requirements.
