High - Load Double Hinge Chain with POM Plates and Stainless Steel Axles for Reliable Heavy - Duty Conveying

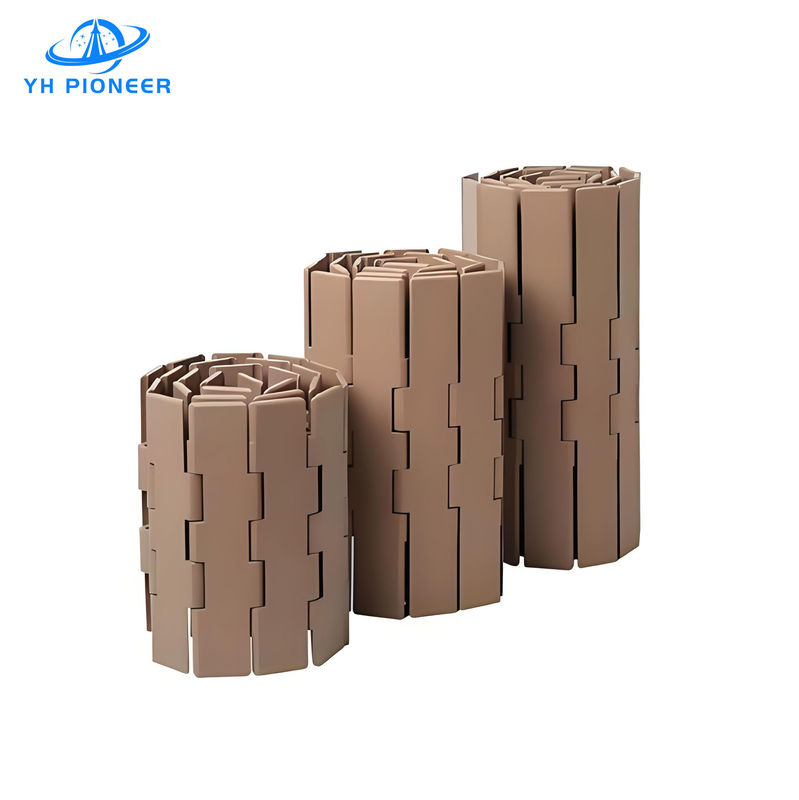

Straight Running Double Hinge Table Top Chain - 821
We provide professional Straight Running Double Hinge Table Top Chain - 821, support the conveying of various types , and provide a variety of conveying types.
The Straight Running Double Hinge Table Top Chain - 821 is an engineered chain solution designed for heavy-duty conveying applications. This robust chain is built to handle substantial loads and is well-suited for environments that demand high load capacities and long-distance transportation.
*Heavy-Load Capability: Designed to bear significant loads, making it ideal for applications that require high load-bearing capacities.
*Anti-static Properties: The chain plates possess anti-static characteristics, suitable for environments that necessitate electrostatic discharge prevention.
*Smooth Load Distribution: The double hinge design ensures even load distribution for a more stable and smooth conveying process.
*High-Speed Operation: Capable of high-speed operation, with a speed of up to 90 meters per minute when used with lubricants.
*Efficient Load Handling: The double hinge design offers superior load distribution and smoother transport, reducing the risk of chain failure under heavy loads.
*Long-Distance Conveying: Suitable for extended conveying paths, with a maximum conveying length of up to 15 meters and a maximum load pull force of less than 2250N.
PRODUCT FEATURES
Our Double Hinge Table Top Chain - 821 is available in various specifications to meet the diverse requirements of heavy-load industries. It is tailored to accommodate different lengths and load capacities, ensuring it can meet the specific needs of your operation.
PRODUCT MATERIALS
*Polyoxymethylene (POM): The chain plates are made from POM, known for its strength and rigidity, providing excellent wear resistance.
*Cold-Rolled Austenitic Stainless Steel: The pins are crafted from this material, enhancing the chain's durability and corrosion resistance.
PRODUCT APPLICATIONS
*Brewery Industry: Particularly recommended for use in the beer manufacturing industry, where lubricants are suggested to improve efficiency and reduce wear.
*Glass and Metal Conveying: Ideal for conveying various glass and heavy metal loads, such as cans, bottles, and trays.
*Food and Beverage Production: Suitable for production lines of food, beverages, and canned products, especially in situations requiring heavy load and long-distance conveying.
PRODUCT PARAMENTERS
|
Product name
|
Straight Running Double hinge Table Top Chain |
|
Application
|
food and beverage industry, such as transportation of bottles,cans etc. |
|
Material
|
POM,Color Coffee,temp:-30°C to 90 °C |
|
Pin material
|
Stainless steel |
|
Maximum speed
|
50M/min lubrication, 30M/min dry |
|
Working load
|
Working load (25°C) 2680N, Max length 15m |
*It can be modified according to customer requirements.
