Low - Maintenance Single Hinge Chain - 810 with High - Friction Rubber Strips for Gentle Material Handling

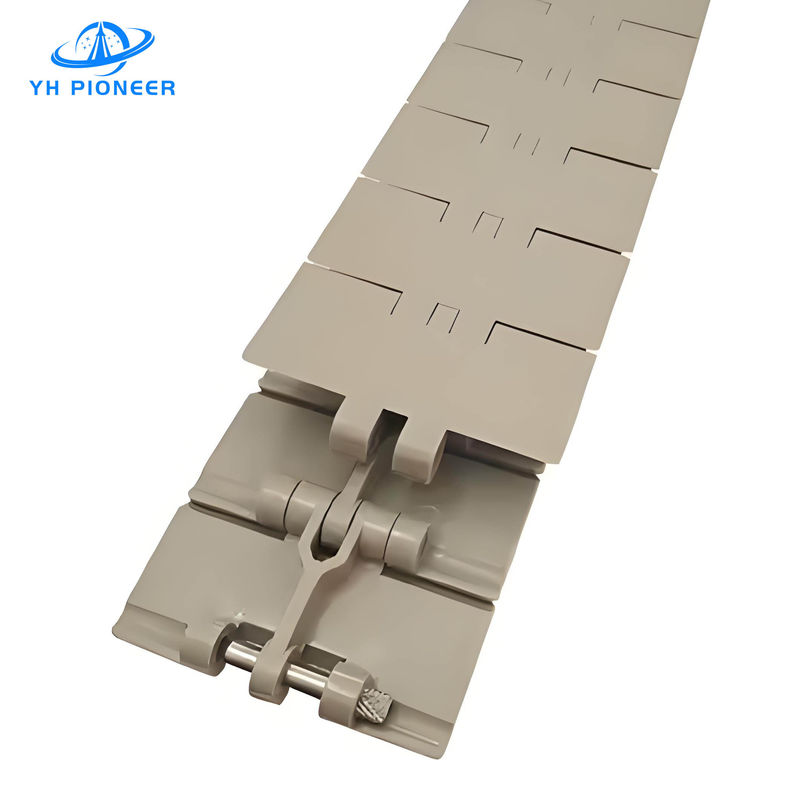

Single Hinge Chain - 810
We provide professional Single Hinge Chain - 810, support the conveying of various types , and provide a variety of conveying types.
The Single Hinge Chain - 810 is a robust and versatile chain designed specifically for the demands of food, beverage, PET bottle, aluminum can, and various other conveying applications. This chain is recognized for its ability to handle a wide range of products with efficiency and reliability.
*Specialized Design: Engineered for applications involving food, beverages, PET bottles, aluminum cans, and more, ensuring compatibility with a diverse range of products.
*High Workload Capacity: Built to withstand substantial loads, the chain maintains performance even under heavy use, which is typical in food and beverage industries.
*High-Speed Capability: Designed to operate at high speeds, crucial for maintaining the pace of modern production lines.
*Low Maintenance: The simple structure of the Single Hinge Chain - 810 requires minimal upkeep, reducing downtime and maintenance costs.
*Enhanced Grip: Optional rubber strips on the chain plates provide additional friction for better grip on slippery surfaces, ensuring secure product handling.
PRODUCT FEATURES
Our Single Hinge Chain - 810 is meticulously crafted to meet the precise requirements of high-volume and high-speed production lines. It is available in various lengths and configurations to suit the specific dimensions and load capacities needed for your operation.
PRODUCT MATERIALS
*Stainless Steel: The primary material used for its corrosion resistance and hygienic properties, essential for industries with strict cleanliness standards.
*POM (Polyoxymethylene): For chain plates that offer high wear resistance and a broad temperature applicability, suitable for various environmental conditions.
OPERATIONAL CONTROL
The Single Hinge Chain is designed for straightforward operation and integration into existing conveyor systems, requiring minimal adjustments for optimal performance.
PRODUCT APPLICATIONS
The Single Hinge Chain - 810 is ideal for use in industries that require high standards of hygiene and corrosion resistance, such as food processing, beverage production, and packaging of PET bottles and aluminum cans. Its versatility makes it suitable for a wide range of industrial applications, including automated assembly lines and specialized equipment.
PRODUCT PARAMENTERS
|
Product name
|
Single hinge chain |
|
Application
|
Main application: food and beverage industry such as transportation of bottles, cans etc. |
|
Material
|
POM. Work temp:-30°C to 90 °C |
|
Pin material
|
Stainless steel |
|
Maximum speed
|
50M/min lubrication, 30M/min dry |
|
WWorking load
|
Working load (25°C) 780N,Max.length 8m |
*It can be modified according to customer requirements.
Please contact us for the latest specification stock and quotation
